TSC80251G1

Features:

C251 core based (MCS 251Intel compliance)
PinOut compatibility with 80C51 standard products
1 Kbyte of internal RAM
TSC83251G1: 16 Kbytes of onchip masked ROM
TSC87251G1: 16 Kbytes of internal programmable ROM (OTP or UV erasable in window package)
TSC80251G1: ROMless version
External memory space (Code/Data) programmable from 64 Kbytes to 256 Kbytes
Four 8bit parallel I/O Ports (Ports 0, 1, 2 and 3 of the standard 80C51)
Three 16bit Timers/Counters (Timers 0, 1 and 2 of the standard 80C51)
Serial I/O Port: full duplex UART (80C51 compatible) with independent Baud Rate Generator
EWC: Event and Waveform Controller
  Compatible with PCA: Programmable Counter Array (5*16bit modules)
  Highspeed output
  Compare/Capture I/O
  8bit Pulse Width Modulator (PWM)
  Watchdog Timer capabilities
SSLC: Synchronous Serial Link Controller
  I²C protocol
  mWire and SPI protocols
Hardware Watchdog Timer
Power Monitoring and Management
  PowerFail reset
  PowerOn reset (integrated on the chip)
  PowerOff flag (cold and warm resets)
  Software programmable system clock
  Idle and PowerDown modes
Keyboard interrupt on Port 1
Non Maskable Interrupt input (NMI)
Realtime Wait states input (WAIT#)
Power Supply: 5 V +/ 10% and 3 V +/ 10% (*)
  Up to 16 MHz operation and three temperature ranges:
  Commercial (0 to +70°C)
  Industrial (40 to +85°C)
  Automotive (40 to +125°C)
Packages : PLCC44, CQPJ44 (window), QFP44 and PDIL40 (**)

* Please contact your sales office for availability of 3 V option
** Please contact your sales office for QFP and PDIL availability

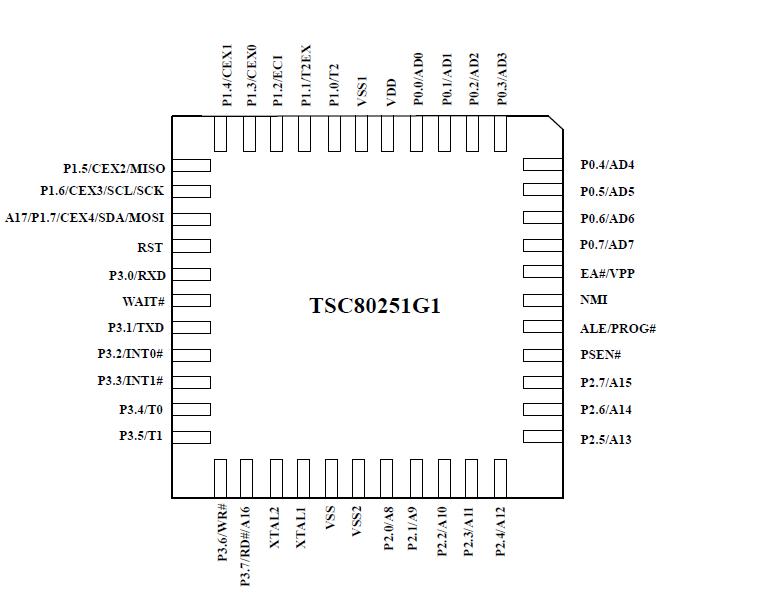

Pinout




Specifications

Ambient Temperature Under Bias
   Commercial   . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to +70°C
   Industrial . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 to +85°C
   Automotive . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to +125°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . . .65 to +150°C
Voltage on EA#/VPP Pin to VSS . . . . . . . . . . . . . .0 to +13.0 V
Voltage on any other Pin to VSS . . . . . . . . . . . . .0.5 to +6.5 V
I_OLper I/O Pin . . . . . . . . . . . . . . . . . . . . . . . . . . .15 mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . .1.5 W

Note:
Stresses at or above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions may affect device reliability.


Description

The TSC80251G1 is available as a ROMless version (TSC80251G1) or with onchip Mask Programmable ROM (TSC83251G1). The TSC87251G1 is an EPROM version compatible to the Mask ROM version.

The standard production packages are 44 pins PLCC or QFP, 40 pins PDIL. All products of TSC80251G1 can be delivered as 12 or 16 MHz versions at 5 Volts and in all major temperature ranges. ROMless and Mask ROM versions are also available in 3 Volts.
