TSA5518M

Features: · Complete 1.3 GHz single chip system· Low power 5 V, 40 mA· I2C-bus programming· One pin crystal oscillator· In-lock flag· Varicap drive disable· Low radiation· Address selection for picture in picture (PIP), DBS tuner,and so on· 5-level A/D converter· 7 bus-controlled ports (4 open-col...

product image

TSA5518M Picture
See larger image
SeekIC No. : 004529093 Detail

TSA5518M: Features: · Complete 1.3 GHz single chip system· Low power 5 V, 40 mA· I2C-bus programming· One pin crystal oscillator· In-lock flag· Varicap drive disable· Low radiation· Address selection for pict...

TSA5518M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TSA5518M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Complete 1.3 GHz single chip system
· Low power 5 V, 40 mA
· I2C-bus programming
· One pin crystal oscillator
· In-lock flag
· Varicap drive disable
· Low radiation
· Address selection for picture in picture (PIP), DBS tuner,and so on
· 5-level A/D converter
· 7 bus-controlled ports (4 open-collector outputs and 3 emitter follower outputs), 1 bidirectional port
· Power-down flag
· Mixer/oscillator bandswitch output
· Available in SSOP20 package.


Application

· TV tuners and front-ends
· VCR tuners.


Pinout

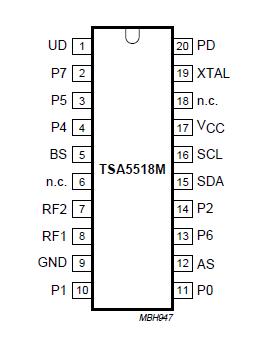

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCC supply voltage   -0.3 +6 V

Vi(XTAL)

 voltage at pin XTAL   -0.3 +VCC V
Vi(SCL) voltage at pin SCL   -0.3 +6 V
VSDA voltage at pin SDA   -0.3 +6 V
Vi(AS) voltage at pin AS   -0.3 +Vcc V
Vo(BS) voltage at pin BS   -0.3 +Vcc V
Vi(RF) voltage at pins RF1 and RF2   -0.3 +Vcc V
Vo output voltage at ports P0, P2
and P6		   -0.3 +16 V
output voltage at ports P4, P5
and P7
VPD output voltage at pin PD   -0.3 +Vcc V
VUD output voltage at pin UD   -0.3 +Vcc V
ISDA output current at pin SDA open collector -1 +Vcc V
Io output current at pins P0, P1
and P2		   -1 +5 mA
output current at pins P4, P5
and P7		 emitter follower -1 +20 mA
output current at pin P6 open collector -40 +10 mA
Tstg storage temperature   - +10
Tj(max) maximum junction temperature   - +150
tsc(GND)(max) maximum short circuit time to
GND		 one pin to GND (VCC = 5.5 V;GND = 0 V) - 10 s
tsc(VCC)(max) maximum short circuit time to
VCC		 one pin to VCC (VCC = 5.5 V; GND = 0 V) - 10 s



Description

The TSA5518M is a single chip PLL frequency synthesizer designed for TV tuning systems. Control data is entered via the I2C-bus; five serial bytes are required to address the device, select the oscillator frequency, program the 7 output ports and set the charge-pump current. The output port P6 is combined with an A/D converter input. Digital information concerning this port can be read out of the SDA line (one status byte) during a READ operation. A flag is set when the loop is 'in-lock' and is read during a READ operation. The TSA5518M has one fixed I2C-bus address, programmed by applying a specific voltage on AS input. The phase comparator operates at 7.8125 kHz when a 4 MHz crystal in used. The TSA5518M provides a bandswitch output to select the bands of the mixer/oscillator ICs TDA5330, TDA5630A except TDA5630/C1 and TDA5730 with the appropriate voltage level.
