TSA5511

Features: · Complete 1.3 GHz single chip system· Low power 5 V, 35 mA· I2C-bus programming· In-lock flag· Varicap drive disable· Low radiation· Address selection for Picture-In-Picture (PIP), DBS tuner (3 addresses)· Analog-to-digital converter· 8 bus controlled ports (5 for TSA5511T), 4 current l...

product image

TSA5511 Picture
See larger image
SeekIC No. : 004529089 Detail

TSA5511: Features: · Complete 1.3 GHz single chip system· Low power 5 V, 35 mA· I2C-bus programming· In-lock flag· Varicap drive disable· Low radiation· Address selection for Picture-In-Picture (PIP), DBS tu...

TSA5511 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TSA5511
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Complete 1.3 GHz single chip system
· Low power 5 V, 35 mA
· I2C-bus programming
· In-lock flag
· Varicap drive disable
· Low radiation
· Address selection for Picture-In-Picture (PIP), DBS tuner (3 addresses)
· Analog-to-digital converter
· 8 bus controlled ports (5 for TSA5511T), 4 current limited outputs (1 for TSA5511T), 4 open collector outputs (bi-directional)
· Power-down flag


Application

· TV tuners
· VCR Tuners


Pinout

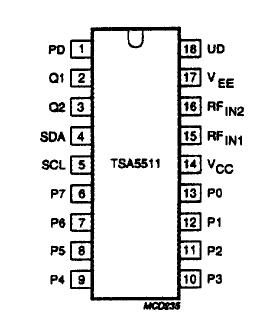

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VCC supply voltage -0.3 +6 V

V1

 charge-pump output voltage -0.3 Vcc V
V2 crystal (Q1) input voltage -0.3 Vcc V
V3 serial data input/output voltage -0.3 6 V
V4 serial clock input voltage -0.3 6 V
V5 address selection input voltage -0.3 6 V
V10 P7 to P0 input/output voltage -0.3 +16 V
V15 prescaler input voltage   +2.5
V18 drive output voltage   Vcc
I6-13 P7 to P0 output current (open collector) -1 +15 mA
I4 SDA output current (open collector) -1 5 mA
Tstg IC storage temperature range -40 +150
Tj maximum junction temperature - 150



Description

The TSA5511 is a single chip PLL frequency synthesizer designed for TV tuning systems. Control data is entered via the I2C-bus; five serial bytes are required to address the device, select the oscillator frequency, programme the eight output ports and set the charge-pump current. Four of these ports can also be used as input ports (three general purpose I/O ports, one ADC). Digital information concerning those ports can be read out of the TSA5511 on the SDA line (one status byte) during a READ operation. A flag is set when the loop is "in-lock" and is read during a READ operation. The device has one fixed I2C-bus address and 3 programmable addresses, programmed by applying a specific voltage on Port 3. The phase comparator operates at 7.8125 kHz when a 4 MHz crystal is used.
