TS8388B

Features: • 8-bit Resolution• ADC Gain Adjust• 1.5 GHz Full Power Input Bandwidth (-3 dB)• 1 GSPS (min) Sampling Rate• SINAD = 44.3 dB (7.2 Effective Bits), SFDR = 58 dBc, at FS = 1 GSPS, FIN = 20 MHz• SINAD = 42.9 dB (7.0 Effective Bits), SFDR = 52 dBc, at FS =...

product image

TS8388B Picture
See larger image
SeekIC No. : 004528979 Detail

TS8388B: Features: • 8-bit Resolution• ADC Gain Adjust• 1.5 GHz Full Power Input Bandwidth (-3 dB)• 1 GSPS (min) Sampling Rate• SINAD = 44.3 dB (7.2 Effective Bits), SFDR = 58 d...

TS8388B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS8388B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 8-bit Resolution
• ADC Gain Adjust
• 1.5 GHz Full Power Input Bandwidth (-3 dB)
• 1 GSPS (min) Sampling Rate
• SINAD = 44.3 dB (7.2 Effective Bits), SFDR = 58 dBc, at FS = 1 GSPS, FIN = 20 MHz
• SINAD = 42.9 dB (7.0 Effective Bits), SFDR = 52 dBc, at FS = 1 GSPS, FIN = 500 MHz
• SINAD = 40.3 dB (6.8 Effective Bits), SFDR = 50 dBc, at FS = 1 GSPS, FIN = 1000 MHz (-3 dB FS)
• 2-tone IMD: -52 dBc (489 MHz, 490 MHz) at 1 GSPS
• DNL = 0.3 lsb, INL = 0.7 lsb
• Low Bit Error Rate (10-13) at 1 GSPS
• Very Low Input Capacitance: 3 pF
• 500 mVpp Differential or Single-ended Analog Inputs
• Differential or Single-ended 50 ECL Compatible Clock Inputs
• ECL or LVDS/HSTL Output Compatibility
• Data Ready Output with Asynchronous Reset
• Gray or Binary Selectable Output Data; NRZ Output Mode
• Power Consumption: 3.4W at Tj = 70°C Typical
• Radiation Tolerance Oriented Design (150 Krad (Si) measured)
• Two Package Versions
• Evaluation board: TSEV8388B
• Demultiplexer TS81102G0: Companion Device Available


Application

* Digital Sampling Oscilloscopes
* Satellite Receiver
* Electronic Countermeasures/Electronic Warfare
* Direct RF Down-conversion

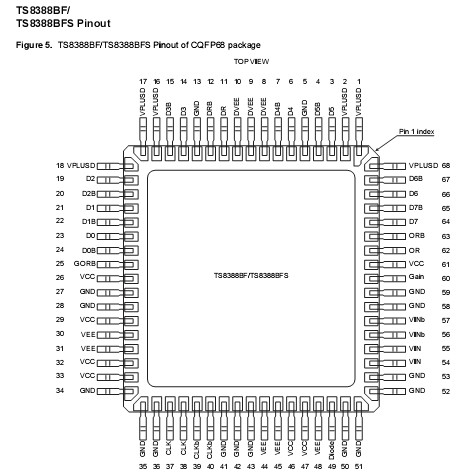

Pinout

Connection Diagram

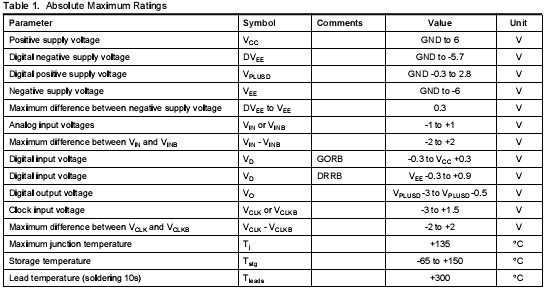

Specifications

Connection Diagram


Description

The TS8388B is a monolithic 8-bit analog-to-digital converter, designed for digitizing wide bandwidth analog signals at very high sampling rates of up to 1 GSPS.
The TS8388B uses an innovative architecture, including an on-chip Sample and Hold (S/H), and is fabricated with an advanced high speed bipolar process.
The on-chip S/H has a 1.5 GHz full power input bandwidth, providing excellent dynamic performance in undersampling applications
