TS834

Features: .ULTRA LOWPOWER CONSUMPTION : 12A max.@ VCC = 5V .BOTH ACTIVE HIGH AND ACTIVE LOWOUT. PUTS .RESET TIMER WITH DISABLE FUNCTION.PRECISION RESET THRESHOLD (guaran. teed over Temperature) .4.33V typ. THRESHOLD VOLTAGE GUARANTEED RESET OPERATIONDOWN TO 1.5V .OPENDRAIN OUTPUT WITH Vol = 450mVt...

product image

TS834 Picture
See larger image
SeekIC No. : 004528977 Detail

TS834: Features: .ULTRA LOWPOWER CONSUMPTION : 12A max.@ VCC = 5V .BOTH ACTIVE HIGH AND ACTIVE LOWOUT. PUTS .RESET TIMER WITH DISABLE FUNCTION.PRECISION RESET THRESHOLD (guaran. teed over Temperature) .4.3...

TS834 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS834
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

.ULTRA LOWPOWER CONSUMPTION :
  12A max.@ VCC = 5V
.BOTH ACTIVE HIGH AND ACTIVE LOWOUT. PUTS
.RESET TIMER WITH DISABLE FUNCTION
.PRECISION RESET THRESHOLD (guaran. teed over Temperature)
.4.33V typ. THRESHOLD VOLTAGE GUARANTEED RESET OPERATIONDOWN TO 1.5V
.OPENDRAIN OUTPUT WITH
  Vol = 450mVtyp.@ Iol = 8mA& VCC = 4V
.FAST RESPONSE TIME : 20s FOR A 10mV
.OVERDRIVE 100mV INTERNAL HYSTERESIS




Application

Computers
Microcontrollers
Microprocessor systems
Intelligent instruments
Power failure detection




Pinout

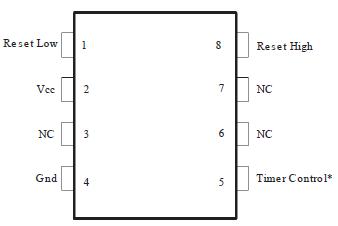

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage - note 1
7
V
Vout
 Output Voltage - note 1
-0.3 to VCC + 0.3
V
Iout
 Output Current
20
mA
Pd
Power Dissipation - note 2 SO8
                            DIP8
700
mW
1200
Toper
 Operating Free Air Temperature Range
-40 to +85
°C
Tstg
 Storage Temperature
-65 to +150
°C


Note: 1. All voltages values, except differential voltage are with respect to network ground terminal.
2. Tj= 150oC, Tamb = 25oC with Rthja = 175oC/W for SO8 package
                                                   Rthja = 100oC/Wfor DIP8 package




Description

The TS834 is a voltage supervisor providing two different outputs (one active low and one active high) with an integrated timer that can be disabled. It incorporates a high stability bandgap voltage referenceand a comparatorwith opendrain output. The threshold voltage is set at 4.33V by internal thermally matched resistors.

The comparator of the TS834 exhibits a 20ms response (with 10mV overdrive).

An internalhysteresisof 100mVincreases thecomparator noise margin and prevents false reset
