Product Details

Description



Features:

·PROGRAMMABLEMODES :
   - Modem 75bps transmit, 1200bps receive
   - Modem 1200bps transmit, 75bps receive
   - DTMF dialing
   - Call status tone detection
   - Auxiliary analog transmit input
   - Analog test loopback PROGRAMMABLE FUNCTIONS :
   - Transmission level
   - Hysteresis and detection level
   - Filters (reception and transmission)
   - Line monitoring and buzzer
   - DTMF frequencies .
·FIXED COMPROMISE LINE EQUALIZER .
·AUTOMATICBIAS ADJUSTMENT .
·INTEGRATEDDUPLEXER .
·STANDARDLOWCOSTCRYSTAL (3.579MHz) .
·TAX TONE REJECTION .
·POWER-UP INITIALIZATIONOF REGISTERS .
·OPERATES FROM  ±5V
·CMOS

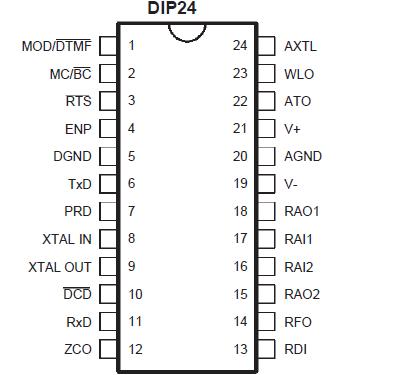

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
DGND
 DGND (digital ground) to AGND (analog ground)
0.3, + 0.3
V
V+
 Supply Voltage V+ to DGND ro AGND
0.3, + 7
V
V
 Supply Voltage V- to DGND or AGND
7, + 0.3
V
VI
 Voltage at any Digital Input
DGND - 0.3, V+ + 0.3
V
Vin
 Voltage at any Analog Input
V 0.3, V + + 0.3
V
Io
 Current at any Digital Output
20, + 20
mA
Iout
 Current at any Analog Output
10, + 10
mA
Ptot
 Power Dissipation
500
mW
Top
 Operating Temperature
0, + 70
Tstg
 Storage Temperature
65, + 150
Tlead
 Lead Temperature (soldering, 10s)
+ 260
If the Maximum Ratings are exceeded, permanent damage may be caused to the device. This is a stress rating only, and functional operation
of the device under these or any other conditions for extendedperiods may affectdevice reliability. StandardCMOS handlingprocedures should
be employed to avoid possible damage to the device.


Description

The TS7514 is an FSK modem which can be programmed for asynchronous half-duplex voicebandcommunications ona 2-wireline or full duplex on a 4-wire line. Its programming concept makes it the ideal component to design low-cost intelligent modems, featuring auto dialing and auto answering. The TS7514 conforms to CCITT V.23 recommendation. The chip incorporates DTMF dialing, line monitoring, tone and dialing detection.
