Features: ` RAIL TO RAIL INPUTS` OPEN DRAIN OUTPUT` SUPPLY OPERATION FROM 2.7V TO 10V` TYPICAL SUPPLY CURRENT: 6A @ 5V` RESPONSE TIME OF 0.5s AT 5V`LOW INPUT CURRENT` ESD PROTECTION : 2KV (HBM) 200V (MM)` AVAILABLE IN TINY SOT23-5 PACKAGEPinoutSpecifications Symbol Parameter Value Un...

product image

TS7221 Picture
See larger image
SeekIC No. : 004528883 Detail

TS7221: Features: ` RAIL TO RAIL INPUTS` OPEN DRAIN OUTPUT` SUPPLY OPERATION FROM 2.7V TO 10V` TYPICAL SUPPLY CURRENT: 6A @ 5V` RESPONSE TIME OF 0.5s AT 5V`LOW INPUT CURRENT` ESD PROTECTION : 2KV (HBM) 200V...

TS7221 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS7221
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` RAIL TO RAIL INPUTS
` OPEN DRAIN OUTPUT
` SUPPLY OPERATION FROM 2.7V TO 10V
` TYPICAL SUPPLY CURRENT: 6A @ 5V
` RESPONSE TIME OF 0.5s AT 5V
`LOW INPUT CURRENT
` ESD PROTECTION : 2KV (HBM) 200V (MM)
` AVAILABLE IN TINY SOT23-5 PACKAGE


Pinout

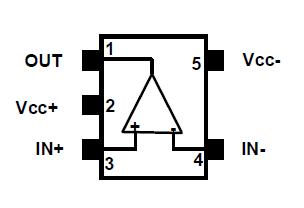

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
ESD
 Human body model (HBM)
2000
V
ESD
 Machine model (MM)
200
V
VID
 Differential Input Voltage
(VCC -) -0.3 to (VCC +) +0.3
V
VIN
 Input Voltage 1)
(VCC -) -0.3 to (VCC +) +0.3
V
VOUT
 Output Voltage
12
V
VCC
 Supply voltage
12
V
IIN
 Current at input pins
± 5
mA
IOUT
 Current at output pin
± 30
mA
TLead
 Lead temperature (soldering 10 seconds)
250
TSTG
 Storage Temperature
-65 to +150
TJ
 Junction Temperature
150
PD
 ower dissipation 2) SOT23-5
500
mW
1. The magnitude of input voltages must never exceed 0.3V beyond the supply voltage.
2. TJ= 150°C, TAMB = 25 with R TH-JA = 250oC/W for SOT23-5 package


Description

The TS7221 is a micropower comparator featuring rail to rail input performance in a tiny SOT23-5 package. This comparator is ideally suited to space and weight critical applications. It is fully specified at 2.7V, 5V and 10V operations over the industrial temperature range (-40/+85°C).

The TS7221 features an open drain output stage. The speed to power ratio makes this device ultra versatile for a wide range of applications.
