Product Details

Description



Features:

`RAIL TO RAIL INPUTS
`PUSH-PULL OUTPUT
` SUPPLY OPERATION FROM 2.7V TO 10V
` TYPICAL SUPPLY CURRENT: 6A @ 5V
` RESPONSE TIME OF 0.5s AT 5V
` LOW INPUT CURRENT
`ESD PROTECTION : 2KV (HBM) 200V (MM)
`AVAILABLE IN TINY SOT23-5 PACKAGE


Application

· Battery powered systems
· Notebooks and PDAs
·PCMCIA cards
· Cellulars and mobile communication
· Alarm and security systems
· Replacement of amplifiers used in comparator configuration with better performances


Pinout

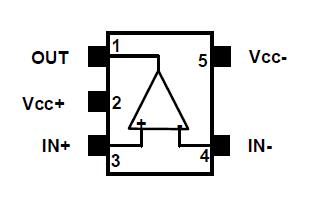

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
ESD
 Human body model (HBM)
2000
V
Machine model (MM)
200
VID
 Differential Input Voltage
(VCC -) -0.3 to (VCC +) +0.3
V
VIN &
VOUT
 Input and output Voltages 1)
(VCC -) -0.3 to (VCC +) +0.3
V
VCC
 Supply voltage
12
V
IIN
 Current at input pins
± 5
mA
IOUT
 Current at output pin
± 30
mA
TLead
 Lead temperature (soldering 10 seconds)
250
TSTG
 Storage Temperature
-65 to +150
TJ
 Junction Temperature
150
PD
 Power dissipation 2) SOT23-5
500
mW
1. The magnitude of input and output voltages must never exceed 0.3V beyond the supply voltage.
2. TJ= 150°C, TAMB = 25°C with R TH-JA = 250°C/W for SOT23-5 package


Description

featuring rail to rail input performance in a tiny SOT23-5 package. This comparator is ideally suited to space and weight critical applications. It is fully specified at 2.7V, 5V and 10V operations over the industrial temperature range (-40/+85°C).

The TS7211 features a push-pull output stage. The speed to power ratio makes this device ultra versatile for a wide range of applications.
