TS636

Features: ` LOW NOISE : 4.7nV Hz ` LOW DISTORTION` HIGH SLEW RATE : 90V/ms` WIDE BANDWIDTH : 52MHz @ -3dB & 18dB gain` GAIN PROGRAMMABLE from -9dB to +30dB with 3dB STEPS` POWER DOWN FUNCTIONApplication· Preamplifier with automatic gain control for Asymmetric Digital Subscriber Line (ADSL).Pin...

product image

TS636 Picture
See larger image
SeekIC No. : 004528860 Detail

TS636: Features: ` LOW NOISE : 4.7nV Hz ` LOW DISTORTION` HIGH SLEW RATE : 90V/ms` WIDE BANDWIDTH : 52MHz @ -3dB & 18dB gain` GAIN PROGRAMMABLE from -9dB to +30dB with 3dB STEPS` POWER DOWN FUNCTIONApp...

TS636 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS636
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` LOW NOISE : 4.7nV Hz
` LOW DISTORTION
` HIGH SLEW RATE : 90V/ms
` WIDE BANDWIDTH : 52MHz @ -3dB & 18dB gain
` GAIN PROGRAMMABLE from -9dB to +30dB with 3dB STEPS
` POWER DOWN FUNCTION


Application

· Preamplifier with automatic gain control for Asymmetric Digital Subscriber Line (ADSL).


Pinout

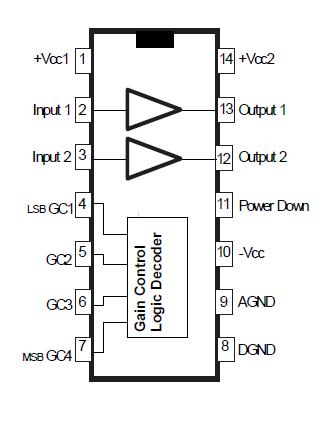

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1)
14
V
Vi
 Input Voltage 2)
0 to 14
V
Toper
 Operating Free Air Temperature Range TS652ID
-40 to + 85
°C
Tstd
 Storage Temperature
-65 to +150
°C
Tj
 Maximum Junction Temperature
150
°C
Rthjc
 Thermal Resistance Junction to Case
22
°C/W
  Rthja Thermal Resistance Junction to Ambiante Area
125
°C/W
 Output Short Circuit Duration
Infinite
1. All voltages values are with respect to network terminal.
2. The magnitude of input and output voltages must never exceed VCC +0.3V.


Description

This TS636 is particularly intended for applications such as preamplification in telecommunication systems using multiple carriers. It has been minly designed to fit with ADSL chip-sets such as ASCOT ADSL chip-set for CPE.

The TS636 is a differential digitally controled variable gain amplifier featuring a high slew rate of 90V/ms, a large bandwidth, a very low distortion and a very low current and voltage noise.

The gain can be set from -9dB to +30dB through a 4bit digital word, with 3dB steps.

The gain monotonicity is guaranteed by design. The TS636 comes in SO-14 plastic packages.
