TS634

Features: ` LOW NOISE : 3.2nVHz , 1.5pA Hz ` HIGH OUTPUT CURRENT : 160mA min.` VERY LOW HARMONIC AND INTERMODULATION DISTORTION` HIGH SLEW RATE : 40V/ms` SPECIFIED FOR 25W LOADApplication· UPSTREAM line driver for Asymmetric Digital Subscriber Line (ADSL) (NT).PinoutSpecifications Symbol P...

product image

TS634 Picture
See larger image
SeekIC No. : 004528858 Detail

TS634: Features: ` LOW NOISE : 3.2nVHz , 1.5pA Hz ` HIGH OUTPUT CURRENT : 160mA min.` VERY LOW HARMONIC AND INTERMODULATION DISTORTION` HIGH SLEW RATE : 40V/ms` SPECIFIED FOR 25W LOADApplication· UPSTREAM ...

TS634 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS634
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` LOW NOISE : 3.2nVHz , 1.5pA Hz
` HIGH OUTPUT CURRENT : 160mA min.
` VERY LOW HARMONIC AND INTERMODULATION DISTORTION
` HIGH SLEW RATE : 40V/ms
` SPECIFIED FOR 25W LOAD


Application

· UPSTREAM line driver for Asymmetric Digital Subscriber Line (ADSL) (NT).


Pinout

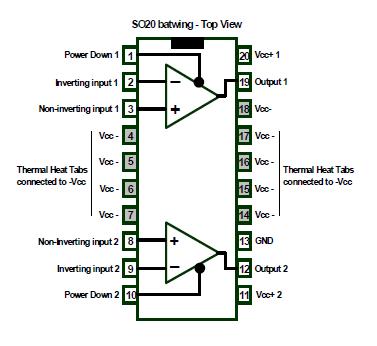

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1)
±7
V
Vid
 Differential Input Voltage 2)
±2
V
Vin
 Input Voltage Range 3)
±6
V
Toper
 Operating Free Air Temperature Range TS634TS634ID
-40 to +85
°C
Tstd
 Storage Temperature
-65 to +150
°C
Tj
 Maximum Junction Temperature
150
°C
SO20-Batwing
Rthjc
 Thermal Resistance Junction to Case
25
°C/W
Rthjc
 Thermal Resistance Junction to Ambient Area
45
°C/W
Pmax.
 Maximum Power Dissipation (@25°C)
2.7
W
1. All voltages values, except differential voltage are with respect to network terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC +0.3V.


Description

This TS634 is particularly intended for applications where multiple carriers must be amplified simultaneously with very low intermodulation products. It has been mainly designed to fit with ADSL chip-set such as ST70134 or ST70135.

The TS634 is a high output current dual operational amplifier, with a large gain-bandwidth product (130MHz) and capable of driving a 25W load at 12V power supply. The TS634 is fitted out with Power Down function in order to decrease the consumption.

The TS634 is housed in SO20 batwing plastic package for a very low thermal resistance.
