Features:

` OPERATING FROM VCC = 2.2V to 5.5V
` 1W RAI L TO RAIL OUTPUT POWER @ Vcc=5V, THD=1%, f=1kHz, with 8 Load
` ULTRA LOW CONSUMPTION IN STANDBY MODE (10nA)
` 75dB PSRR @ 217Hz from 5 to 2.2V
` POP & CLICK REDUCTION CIRCUITRY
` ULTRA LOW DISTORTION (0.1%)
` UNITY GAIN STABLE
` AVAILABLE IN SO8, MiniSO8 & DFN8


Application

· Mobile Phones (Cellular / Cordless)
· Laptop / Notebook Computers
· PDAs
· Portable Audio Devices


Pinout

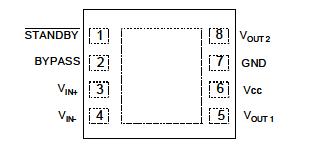

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1)
6
V
Vi
 Input Voltage 2)
GND to VCC
V
Tope
 Operating Free Air Temperature Range
-40 to + 85
Tstg
 Storage Temperature
-65 to +150
Tj
 Maximum Junction Temperature
150
Rthja
 Thermal Resistance Junction to Ambient3)
SO8
MiniSO8
DFN8
175
215
70
/W
Pd
 Power Dissipation4)
See Power Derating Curves
Fig. 24
W
ESD
 Human Body Model
2
kV
ESD
 Machine Model
200
V
  Latch-up Immunity
Class A
Lead Temperature (soldering, 10sec)
260
1. All voltages values are measured with respect to the ground pin.
2. The magnitude of input signal must never exceed VCC + 0.3V / GND - 0.3V
3. Device is protected in case of over temperature by a thermal shutdown active @ 150°C.
4. Exceeding the power derating curves during a long period may involve abnormal working of the device.



Description

The TS4890 (MiniSO8 & SO8) is an Audio Power Amplifier capable of delivering 1W of continuous RMS. ouput power into 8W load @ 5V.

This Audio Amplifier is exhibiting 0.1% distortion level (THD) from a 5V supply for a Pout = 250mW RMS. An external standby mode control reduces the supply current to less than 10nA. An internal thermal shutdown protection is also provided.

The TS4890 have been designed for high quality audio applications such as mobile phones and to minimize the number of external components.

The unity-gain stable amplifier can be configured by external gain setting resistors.
