TS482

Features: · Operating from Vcc=2V to 5.5V· 100mW into 16W at 5V· 38mW into 16W at 3.3V· 11.5mW into 16W at 2V· Switch ON/OFF click reduction circuitry· High Power Supply Rejection Ratio: 85dB at 5V· High Signal-to-Noise ratio: 110dB(A) at 5V· High Crosstalk immunity: 100dB (F=1kHz)· Rail to Rail i...

product image

TS482 Picture
See larger image
SeekIC No. : 004528742 Detail

TS482: Features: · Operating from Vcc=2V to 5.5V· 100mW into 16W at 5V· 38mW into 16W at 3.3V· 11.5mW into 16W at 2V· Switch ON/OFF click reduction circuitry· High Power Supply Rejection Ratio: 85dB at 5V·...

TS482 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS482
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating from Vcc=2V to 5.5V
· 100mW into 16W at 5V
· 38mW into 16W at 3.3V
· 11.5mW into 16W at 2V
· Switch ON/OFF click reduction circuitry
· High Power Supply Rejection Ratio: 85dB at 5V
· High Signal-to-Noise ratio: 110dB(A) at 5V
· High Crosstalk immunity: 100dB (F=1kHz)
· Rail to Rail input and output
· Unity-Gain Stable
· Available in SO8, MiniSO8 & DFN8


Application

· Stereo Headphone Amplifier
· Optical Storage
· Computer Motherboard
· PDA, organizers & Notebook computers
· High end TV, Set Top Box, DVD Players
· Sound Cards


Pinout

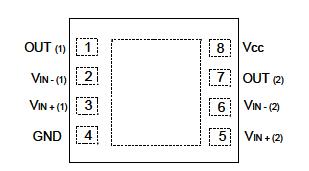

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1)
6
V
Vi
 Input Voltage
-0.3 to VCC +0.3
V
Toper
 Operating Free Air Temperature Range
-40 to + 85
°C
Tstg
 Storage Temperature
-65 to +150
°C
Tj
 Maximum Junction Temperature
150
°C
Rthja
 Thermal Resistance Junction to Ambient
SO8
MiniSO8
DFN8
175
215
70
°C/W
Pd
 Power Dissipation 2)
SO8
MiniSO8
DFN8
0.71
0.58
1.79
W
ESD
 Human Body Model (pin to pin)
2
KV
ESD
 Machine Model - 220pF - 240pF (pin to pin)
200
V
Latch-up
 Latch-up Immunity (All pins)
200
mA
 Lead Temperature (soldering, 10sec)
250
°C
  Output Short-Circuit Duration
see note 3)
1. All voltages values are measured with respect to the ground pin.
2. Pd has been calculated with Tamb = 25°C, Tjunction = 150°C.
3. Attention must be paid to continuous power dissipation. Exposure of the IC to a short circuit on one or two amplifiers simultaneously can cause excessive
    heating and the destruction of the device.


Description

The TS482 is a dual audio power amplifier able to drive a 16 or 32 stereo headset down to low voltages.

It's delivering up to 100mW per channel (into 16W loads) of continuous average power with 0.1% THD+N from a 5V power supply.

The unity gain stable TS482 can be configured by external gain-setting resistors.
