TS4872

Features: ` OPERATING FROM VCC = 2.2V to 5.5V` RAIL TO RAIL INPUT/OUTPUT`1W OUTPUT POWER @ Vcc=5V, THD=1%, f=1kHz, with 8 Load` ULTRA LOW CONSUMPTION IN STANDBY MODE (10nA)` 75dB PSRR @ 217Hz @ 5 & 2.6V` ULTRA LOW POP & CLICK` ULTRA LOW DISTORTION (0.05%)` UNITY GAIN STABLE` 8 X170m BUMPS ...

product image

TS4872 Picture
See larger image
SeekIC No. : 004528748 Detail

TS4872: Features: ` OPERATING FROM VCC = 2.2V to 5.5V` RAIL TO RAIL INPUT/OUTPUT`1W OUTPUT POWER @ Vcc=5V, THD=1%, f=1kHz, with 8 Load` ULTRA LOW CONSUMPTION IN STANDBY MODE (10nA)` 75dB PSRR @ 217Hz @ 5 &a...

TS4872 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS4872
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` OPERATING FROM VCC = 2.2V to 5.5V
` RAIL TO RAIL INPUT/OUTPUT
`1W OUTPUT POWER @ Vcc=5V, THD=1%, f=1kHz, with 8 Load
` ULTRA LOW CONSUMPTION IN STANDBY MODE (10nA)
` 75dB PSRR @ 217Hz @ 5 & 2.6V
` ULTRA LOW POP & CLICK
` ULTRA LOW DISTORTION (0.05%)
` UNITY GAIN STABLE
` 8 X170m BUMPS FLIP CHIP PACKAGE


Application

· Mobile Phones (Cellular / Cordless)
· PDAs
· Laptop/Notebook computers
· Portable Audio Devices


Pinout

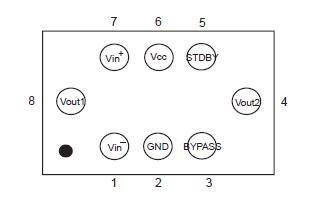

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply Voltage - note 1
6
V
Vi
 Input Voltage 2)
GND to VCC
V
Tope
 Operating Free Air Temperature Range
-40 to + 85
Tstg
 Storage Temperature
-65 to +150
Tj
 Maximum Junction Temperature
150
Rthja
 Flip Chip Thermal Resistance Junction to Ambient 3)
200
/W
Pd
 Power Dissipation
Internally Limited
ESD
 Human Body Model
2
kV
ESD
 Machine Model
200
V
Latch-up
 Latch-up Immunity
Class A
Lead Temperature (soldering, 10sec)
250
1. All voltages values are measured with respect to the ground pin.
2. The magnitude of input signal must never exceed VCC + 0.3V / GND - 0.3V
3. Device is protected in case of over temperature by a thermal shutdown active @ 150°C


Description

The TS4872 is an Audio Power Amplifier capable of delivering 1W of continuous RMS Ouput Power into 8 load @ 5V.

This Audio Amplifier is exhibiting 0.1% distortion level (THD) from a 5V supply for a Pout = 250mW RMS. An external standby mode control reduces the supply current to less than 10nA. An internal shutdown protection is provided.

The TS4872 has been designed for high quality audio applications such as mobile phones and to minimize the number of external components.

The unity-gain stable amplifier can be configured by external gain setting resistors.
