TS4851

Features: ` Operating from VCC = 3 V to 5.5 V` Rail to rail input/output` Speaker driver with 1 W output @ Vcc = 5 V, THD+N = 1%, F = 1 kHz, 8 load` Headset drivers with 160 mW output @ Vcc = 5 V, THD+N = 1%, F = 1 kHz, 32 W load` Headset output is 30 mW in stereo @ Vcc = 3 V` THD+N < 0.5% Max...

product image

TS4851 Picture
See larger image
SeekIC No. : 004528743 Detail

TS4851: Features: ` Operating from VCC = 3 V to 5.5 V` Rail to rail input/output` Speaker driver with 1 W output @ Vcc = 5 V, THD+N = 1%, F = 1 kHz, 8 load` Headset drivers with 160 mW output @ Vcc = 5 V, ...

TS4851 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS4851
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating from VCC = 3 V to 5.5 V
` Rail to rail input/output
` Speaker driver with 1 W output @ Vcc = 5 V, THD+N = 1%, F = 1 kHz, 8 load
` Headset drivers with 160 mW output @ Vcc = 5 V, THD+N = 1%, F = 1 kHz, 32 W load
` Headset output is 30 mW in stereo @ Vcc = 3 V
` THD+N < 0.5% Max @ 20 mW into 32 W BTL, 50 Hz < Frequency < 20 kHz
` 32-step digital volume control from -34.5 dB to +12 dB
` +6 dB power up volume and full standby
` 8 different output modes
` Pop & click reduction circuitry
` Low shutdown current (< 100 nA)
` Thermal shutdown protection
` Flip-chip package 18 x 300 m bumps


Application

· Mobile Phones


Pinout

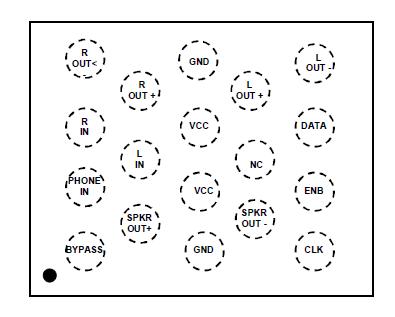

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage1
6
V
Toper
 Operating Free Air Temperature Range
-40 to + 85
Tstg
 Storage Temperature
-65 to +150
Tj
 Maximum Junction Temperature
150
Rthja
 Flip Chip Thermal Resistance Junction to Ambient2
200
/W
Pd
 Power Dissipation
Internally Limited
ESD
 Human Body Model
2
kV
ESD
 Machine Model
100
V
 Latch-up Immunity
200
mA
  Lead Temperature (soldering, 10sec)
250
(1) All voltages values are measured with respect to the ground pin.
(2) Device is protected in case of over temperature by a thermal shutdown active @ 150°C


Description

The TS4851 is a low power audio amplifier that can drive either both a mono speaker or a stereo headset. To the speaker, it can deliver 400 mW
(typ.) of continuous RMS output power into an 8 load with a 1% THD+N value. To the headset driver, the amplifier can deliver 30 mW (typ.) per
channel of continuous average power into a stereo 32  bridged-tied load with 0.5% THD+N @ 3.3 V.

This TS4851 features a 32-step digital volume control and 8 different output selections. The digital volume and output modes are controlled through a three-digit SPI interface bus.
