TS3DV416

Features: ` Wide Bandwidth (BW = 900 MHz Typ, 1.8 Gbps)` Low Crosstalk (XTALK = 41 dB Typ)` Low Bit-to-Bit Skew (tsk(o) = 0.2 ns Max)` Low and Flat ON-State Resistance (ron = 4 W Typ, ron(flat) = 0.7 W Typ)` Low Input/Output Capacitance (CON = 10 pF Typ)` Rail-to-Rail Switching on Data I/O Ports (...

product image

TS3DV416 Picture
See larger image
SeekIC No. : 004528687 Detail

TS3DV416: Features: ` Wide Bandwidth (BW = 900 MHz Typ, 1.8 Gbps)` Low Crosstalk (XTALK = 41 dB Typ)` Low Bit-to-Bit Skew (tsk(o) = 0.2 ns Max)` Low and Flat ON-State Resistance (ron = 4 W Typ, ron(flat) = 0....

TS3DV416 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS3DV416
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Wide Bandwidth (BW = 900 MHz Typ, 1.8 Gbps)
` Low Crosstalk (XTALK = 41 dB Typ)
` Low Bit-to-Bit Skew (tsk(o) = 0.2 ns Max)
` Low and Flat ON-State Resistance (ron = 4 W Typ, ron(flat) = 0.7 W Typ)
` Low Input/Output Capacitance (CON = 10 pF Typ)
` Rail-to-Rail Switching on Data I/O Ports (0 to 5 V)
` VDD Operating Range From 3 V to 3.6 V
` Ioff Supports Partial-Power-Down Mode Operation
` Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
` ESD Performance Tested Per JESD 22
    2000-V Human-Body Model (A114-B, Class II)
    1000-V Charged-Device Model (C101)
` Applications
    Digital Video Signal Switching
    Differential DVI, HDMI Signal Muxing for Audio/Video Receivers and High Definition Television (HDTV)


Application

Digital Video Signal Switching
Differential DVI, HDMI Signal Muxing for Audio/Video Receivers and High Definition Television (HDTV)

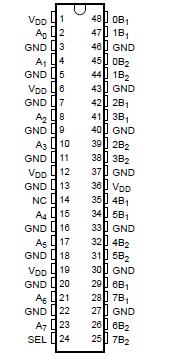

Pinout

Connection Diagram


Specifications

  MIN MAX UNIT
VCC  Supply voltage range 0.5 4.6 V
VIN Control input voltage range(2) (3) 0.5 7 V
VI/O Switch I/O voltage range(2) (3) (4) 0.5 7 V
IIK Control input clamp current VIN < 0 50 mA
II/OK I/O port clamp current VI/O < 0 50 mA
II/O ON-state switch current(5) ±128 mA
Continuous current through VCC or GND ±100 mA
qJA Package thermal impedance(6) DGG package 70 °C/W
DGV package 58
Tstg Storage temperature range 65 150 °C



Description

The TS3DV416 is a 16-bit to 8-bit multiplexer/demultiplexer digital video switch with a single select (SEL) input.SEL controls the data path of the multiplexer/demultiplexer.

The TS3DV416 provides a low and flat on-state resistance (ron) and an excellent on-resistance match. Low input/output capacitance, high-bandwidth, low skew, and low crosstalk among channels make this device suitable for various digital video applications, such as DVI and HDMI.
