TS321I

Features: · OUTPUT VOLTAGE SWING :· 0 to 3.5V min. (@VCC = 5V)· LOW SUPPLY CURRENT : 500mA· LOW INPUT BIAS CURRENT : 20nA· LOW INPUT OFFSET VOLTAGE : 2mV max.· WIDE POWER SUPPLY RANGE :· SINGLE SUPPLY : +3V TO +30V· DUAL SUPPLIES : ±1.5V TO ±15V· STABLE WITH HIGH CAPACITIVE LOADSPinoutSpecificatio...

product image

TS321I Picture
See larger image
SeekIC No. : 004528601 Detail

TS321I: Features: · OUTPUT VOLTAGE SWING :· 0 to 3.5V min. (@VCC = 5V)· LOW SUPPLY CURRENT : 500mA· LOW INPUT BIAS CURRENT : 20nA· LOW INPUT OFFSET VOLTAGE : 2mV max.· WIDE POWER SUPPLY RANGE :· SINGLE SUPP...

TS321I Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS321I
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· OUTPUT VOLTAGE SWING :
· 0 to 3.5V min. (@VCC = 5V)
· LOW SUPPLY CURRENT : 500mA
· LOW INPUT BIAS CURRENT : 20nA
· LOW INPUT OFFSET VOLTAGE : 2mV max.
· WIDE POWER SUPPLY RANGE :
· SINGLE SUPPLY : +3V TO +30V
· DUAL SUPPLIES : ±1.5V TO ±15V
· STABLE WITH HIGH CAPACITIVE LOADS

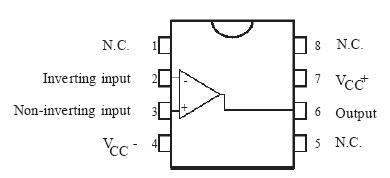

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
VCC Supply Voltage ±16 to 32 V
Vi Input Voltage
 -0.3 to +32 V
Vid Differential Input Voltage +32 V
- Output Short-circuit Duration - note 1) Infinite
Iin Input Current - note 2) 50 mA
Toper Operating Free-Air Temperature Range -40 to +125 °C
Tstg Storage Temperature Range -65 to +150 °C



Description

The TS321I is intended for cost sensitive applications where space saving is of great importance. This bipolar Op-Amp TS321I offers the benefits of a reduced component size (SOT23-5 package), with specifications that match (or better) industry standard devices (like the popular LM358A, LM324, etc.). The TS321I has an input common mode range (Vicm) that includes ground, therefore can be employed in single supply applications.
