TS321AI

Features: ·LARGE OUTPUT VOLTAGE SWING : .0 to 3.5V min. (@VCC = 5V) .·LOWSUPPLY CURRENT : 300mA .·LOWINPUT BIASCURRENT : 20nA .·LOWINPUT OFFSET VOLTAGE : 2mV max. ·WIDE POWER SUPPLY RANGE : SINGLE SUPPLY : +3V TO +30V DUAL SUPPLIES : ±1.5V TO ±15V ·STABLEWITH HIGH CAPACITIVE LOADSPinoutSpecificati...

product image

TS321AI Picture
See larger image
SeekIC No. : 004528600 Detail

TS321AI: Features: ·LARGE OUTPUT VOLTAGE SWING : .0 to 3.5V min. (@VCC = 5V) .·LOWSUPPLY CURRENT : 300mA .·LOWINPUT BIASCURRENT : 20nA .·LOWINPUT OFFSET VOLTAGE : 2mV max. ·WIDE POWER SUPPLY RANGE : SINGLE S...

TS321AI Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS321AI
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·LARGE OUTPUT VOLTAGE SWING : .0 to 3.5V min. (@VCC = 5V) .
·LOWSUPPLY CURRENT : 300mA .
·LOWINPUT BIASCURRENT : 20nA .
·LOWINPUT OFFSET VOLTAGE : 2mV max.
·WIDE POWER SUPPLY RANGE : SINGLE SUPPLY : +3V TO +30V
   DUAL SUPPLIES : ±1.5V TO ±15V
·STABLEWITH HIGH CAPACITIVE LOADS

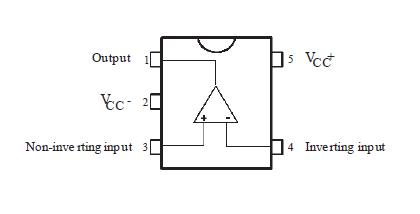

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
Vcc
 Supply Voltage
±16 or 32
V
Vi
 Input Voltage
-0.3 to +32
V
Vid
 Differential Input Voltage
+32
V
-
 Output Short-circuit Duration - (note 1)
Infinite
Iin
 Input Current (note 5)
50
mA
Toper
 Operating Free Air Temperature Range
-40 to +125
Tstg
 Storage Temperature Range
-65 to +150



Description

The TS321AI is intended for cost sensitive applications where space saving is of great importance. This bipolar Op-Amp offers the benefits of a reduced component size (SOT23-5 package), with specifications that match (or better) industry standard devices (like the popular LM358A, LM324, etc.). The TS321AI hasan inputcommonmode range (Vicm) that includes ground, therefore can be employed in single supply applications.
