Product Details

Description



Features:

OPERATING AT VCC = 1.8V to 6V
RAIL TO RAIL INPUT & OUTPUT
EXTENDED Vicm (Vee - 0.2V to VCC + 0.2V)
LOW SUPPLYCURRENT (400 A)
GAIN BANDWIDTH PRODUCT (1.6MHz)
HIGH STABILITY
ESD TOLERANCE (2kV)
LATCH-UP IMMUNITY (Class A)
AVAILABLE IN SOT23-5 MICROPACKAGE


Application

Battery-powered applications
Portable communication devices (cell phone)
Active filters
Audio drivers
Line drivers

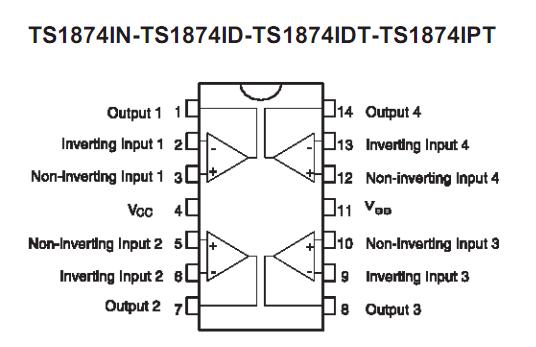

Pinout

Connection Diagram


Description

The TS1874(Single, Dual & Quad) is operational amplifier able to operate with voltages as low as 1.8V and features both I/O Rail to Rail.

The common mode input voltage extends 200mV @25°C beyond the supply voltages of the TS1874 while the out-put voltage swing iswithin 100mV of each Rail for a 600Ω load resistor. This I/O Rail to Rail configuration gives the chance to the user to have the entire supply voltage range available. Offering 20mA
min., 65mA typ. value and exhibiting an excellent speed-power ratio, 1.6MHz GBP & 400µA supply current, this Op-Amp is very well-suited for bat-
tery-supplied and portable applications.

Stability and minimum overshoot of the TS1874 with capacitive loads is maintained by 53° typ. of phase margin with 100pF load capacitor @ 1.8V.
