TS1851

Features: · OPERATING AT VCC = 1.8V to 6V· RAIL TO RAIL INPUT & OUTPUT· EXTENDED Vicm (Vee - 0.2V to VCC + 0.2V)· LOW SUPPLY CURRENT (120µA)· GAIN BANDWIDTH PRODUCT (480kHz)· HIGH STABILITY (able to drive 500pF)· ESD TOLERANCE (2kV)· LATCH-UP IMMUNITY· AVAILABLE IN SOT23-5 MICROPACKAGEAp...

product image

TS1851 Picture
See larger image
SeekIC No. : 004528471 Detail

TS1851: Features: · OPERATING AT VCC = 1.8V to 6V· RAIL TO RAIL INPUT & OUTPUT· EXTENDED Vicm (Vee - 0.2V to VCC + 0.2V)· LOW SUPPLY CURRENT (120µA)· GAIN BANDWIDTH PRODUCT (480kHz)· HIGH STABILIT...

TS1851 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS1851
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· OPERATING AT VCC = 1.8V to 6V
· RAIL TO RAIL INPUT & OUTPUT
· EXTENDED Vicm (Vee - 0.2V to VCC + 0.2V)
· LOW SUPPLY CURRENT (120µA)
· GAIN BANDWIDTH PRODUCT (480kHz)
· HIGH STABILITY (able to drive 500pF)
· ESD TOLERANCE (2kV)
· LATCH-UP IMMUNITY
· AVAILABLE IN SOT23-5 MICROPACKAGE


Application

· Two-cell battery-powered systems
· Portable/Battery-powered electronic equipment
· Cordless phones
· Cellular phones
· Laptops
· PDAs


Pinout

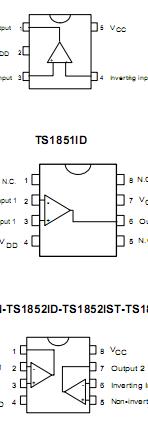

Connection Diagram Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage 1) 7 V
Vid Differential Input Voltage 2) ±1 V
Vi Input Voltage 3) -0.3 to VCC +0.3 V
Toper Opearting Free-air Temperature Range -40 to + 125
Tstg Storage Temperature Range -65 to +150
Tj Maximum Junction Temperature 150
Rthjc Thermal Resistance Junction to Case 4)
SOT23-5
DIP8
DIP14
miniSO8
SO8
SO14
TSSOP8
TSSOP14		 81
41
33
39
40
31
37
32		 /W
Rthja Thermal Resistance Junction to Ambient - SOT23-5 256 /W
ESD Human Body Model 2 kV
  Lead Temperature (soldering, 10sec) 250

1. All voltages values, except differential voltage are with respect to network terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC +0.3V.
4. Short-circuits can cause excessive heating. Destructive dissipation can result from simultaneous short-circuit on all amplifiers




Description

The TS1851 (Single, Dual & Quad) is operational amplifier able to operate with voltages as low as 1.8V and features both Input and Output Rail to Rail (1.71 @ VCC = 1.8V, RL = 2kΩ), 120µA con- sumption current and 480kHz Gain Bandwidth Product.

With a such low consumption and a sufficient GBP of the TS1851 for many applications, this Op-Amp is very well-suited for any kind of battery-supplied and portable equipment applications.

The TS1851 is housed in the space-saving 5 pin SOT23-5 package which simplifies the board de-sign (outside dimensions are 2.8mm x 2.9mm).
