TS1872

Features: OPERATING AT VCC = 1.8V to 6VRAIL TO RAIL INPUT & OUTPUTEXTENDED Vicm (Vee - 0.2V to VCC + 0.2V)LOW SUPPLYCURRENT (400 A)GAIN BANDWIDTH PRODUCT (1.6MHz)HIGH STABILITYESD TOLERANCE (2kV)LATCH-UP IMMUNITY (Class A)AVAILABLE IN SOT23-5 MICROPACKAGEApplicationBattery-powered applications...

product image

TS1872 Picture
See larger image
SeekIC No. : 004528476 Detail

TS1872: Features: OPERATING AT VCC = 1.8V to 6VRAIL TO RAIL INPUT & OUTPUTEXTENDED Vicm (Vee - 0.2V to VCC + 0.2V)LOW SUPPLYCURRENT (400 A)GAIN BANDWIDTH PRODUCT (1.6MHz)HIGH STABILITYESD TOLERANCE (2kV...

TS1872 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS1872
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

OPERATING AT VCC = 1.8V to 6V
RAIL TO RAIL INPUT & OUTPUT
EXTENDED Vicm (Vee - 0.2V to VCC + 0.2V)
LOW SUPPLYCURRENT (400 A)
GAIN BANDWIDTH PRODUCT (1.6MHz)
HIGH STABILITY
ESD TOLERANCE (2kV)
LATCH-UP IMMUNITY (Class A)
AVAILABLE IN SOT23-5 MICROPACKAGE


Application

Battery-powered applications
Portable communication devices (cell phone)
Active filters
Audio drivers
Line drivers

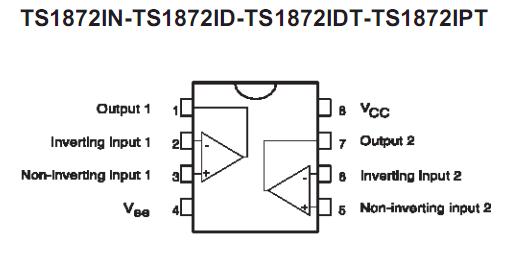

Pinout

Connection Diagram


Description

The TS1872 (Single, Dual & Quad) is operational amplifier able to operate with voltages as low as 1.8V and features both I/O Rail to Rail.

The common mode input voltage extends 200mV @25°C beyond the supply voltages while the out-put voltage swing iswithin 100mV of each Rail for a 600Ω load resistor. This I/O Rail to Rail configuration gives the chance to the user to have the entire supply voltage range available. Offering 20mA
min., 65mA typ. value and exhibiting an excellent speed-power ratio, 1.6MHz GBP & 400µA supply current, this Op-Amp is very well-suited for bat-
tery-supplied and portable applications.

Stability and minimum overshoot of the TS1872 with capacitive loads is maintained by 53° typ. of phase margin with 100pF load capacitor @ 1.8V.
