Product Details

Description



Features:

· Single Positive Power Supply (No Negative Voltage Required)
· Advanced Silicon RFMOS Technology
· 4.8-V Operation for GSM Applications
· 35-dBm Typical Output Power
· 30-dB Typical Power Gain
· 40% Typical PAE with 5-dBm Input Power
· 45% Typical PAE with 8-dBm Input Power
· Output Power Control
· Few External Components Required for Operation
· Thermally Enhanced Surface-Mount Package for Small Circuit Footprint
· Rugged, Sustains 20:1 Load Mismatch
· 800-MHz to 1000-MHz Wide Operational Frequency Range
· Low Standby Current (<10 µA)

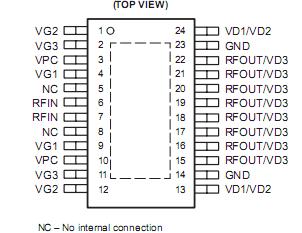

Pinout

  Connection Diagram


Specifications

Supply voltage range, VDD (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 8 V
Input voltage range, VPC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 4 V
Input power at RFIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  13 dBm
Thermal resistance, junction to case, RJC (see Note 2)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5°C/W
Junction temperature, TJmax  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65°C to 150°C



Description

The TRF7610 is a silicon MOSFET power amplifier IC for 900-MHz applications, tailored specifically for global systems for mobile communications (GSM). It uses Texas Instruments RFMOS process and consists of a three-stage amplifier with output power control. Few external components are required for operation.

The TRF7610 amplifies the RF signal from a preceding modulator and the upconverter stages in an RF section of a transmitter to a level that is sufficient for connection to the antenna. The RF input port, RFIN, and the RF output port, RFOUT, require simple external matching networks.

A control signal of TRF7610 applied to the VPC input can ramp the RF output power up or down to meet ramp and spurious emission specifications for time-division multiple-access (TDMA) systems. The power control signal causes a change in output power as the voltage of TRF7610 applied to VPC varies between 0 V and 3 V. With the RF input power applied to RFIN at 5 dBm, adjusting VPC from 0 V to 3 V increases the output power from a typical value of 43 dBm at VPC = 0 V to a typical value of 35 dBm at VPC = 3 V. Forward isolation of TRF7610 with the RF input power applied to RFIN at 5 dBm, VPC = 0 V, is typically 48 dB.

The TRF7610 is available in a thermally enhanced, surface-mount, 24-pin PowerPAD (PWP) thin-shrink small-outline package (TSSOP). It is characterized for operation from 40°C to 85°C operating free-air temperature. In order to maintain acceptable thermal operating conditions, the TRF7610 should be operated in pulse applications such as the GSM standard 1/8 duty cycle. The package has a solderable pad that improves the package thermal performance by bonding the pad to an external thermal plane. The pad of TRF7610 also acts as a low-inductance electrical path to ground and must be electrically connected to the printed circuit-board (PCB) ground plane as a continuation of the regular package terminals that are designated GND.
