TQM613027

RF Amplifier Cell band CDMA

product image

TQM613027 Picture
SeekIC No. : 00613174 Detail

TQM613027: RF Amplifier Cell band CDMA

floor Price/Ceiling Price

Part Number:
TQM613027
Mfg:
TriQuint Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Packaging : Reel

Description

Type :
Operating Frequency :
Noise Figure :
Bandwidth :
Output Intercept Point :
Operating Supply Voltage :
Supply Current :
Maximum Operating Temperature :
Mounting Style :
Package / Case :
Packaging : Reel


Features:

•InGaP GaAs HBT PA with high efficiency at low power architecture
•Low Quiescent Current Typical: 18 mA
• Low Current Consumption Typical: 430 mA @ +25.5dBm Typical: 415 mA @ +24.5dBm Typical: 40 mA @ +13.5dBm
•Excellent ACPRTypical: -50 dBc @ +/- 885kHz offset
•Excellent ALTRTypical: -60 dBc @ +/- 1.98 MHz offset
•Lead-free 260°C RoHS Compliant
•Small 20-pin, 7.0x4.0mm module with matching replacing ~10 discrete components
•Height of 1.17mm for thin phones
•Integrated duplexer, coupler, differential input transmit filter and matching
•Optimized for use with Qualcomm's QSC6010/20/30TM single chip devices



Application

• IS-95/98/CDMA2000
•Single-band CDMA Cellular radios

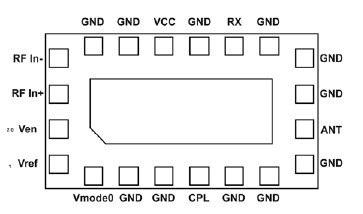

Pinout

  Connection Diagram


Description

TriQuint's TQM613027 is a fully matched CDMA cellular band PA/Duplexer (PAD) module for use in mobile phones. The 7.0 x 4.0 x 1.2 mm, 20-pin module includes a SAW Duplexer, Power Amplifier, Differential input transmit filter, RF Power Coupler and Logic Controller. With an RF Power Output up to 25.5dBm the TQM613027 PAD meets the strict ACPR and ALTR requirements for products designed to the CDMA IS-95/98/2000 standards. It's thin form factor and compact size, coupled with the low quiescent current, makes the TQM613027 ideal for today's compact feature rich multi-media handsets requiring longer battery life.

TriQuint's multilayer laminate technology provides low loss interconnect and optimized match between the duplexer, PA and filter enabling the TQM613027 to achieve only 40 mA of typical current consumption at maximum output power in low power mode (+13.5dBm). The small 7.0 * 4.0 mm module replaces four separate components and matching requiring less board space. TQM613027 provides handset designers with a simple to use surface mount module requiring minimal external circuitry for faster time to market and reduced BOM count.
