TQM613017

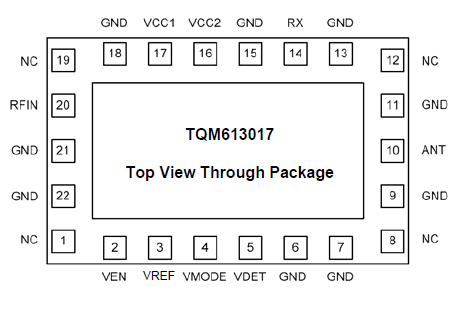

TriQuint's TQM613017 is a fully matched PA/Duplexer, Front End Module (FEM) for CDMA/AMPS use in mobile phones. The 8 x 5 x 1.52 mm, 22-pin module includes an integrated SAW Duplexer, Power Amplifier, Transmit filter, RF Power Detector and Logic Controller. With an RF Power Output up to 25.5dBm the TQM613017 FEM meets the strict ACPR and ALTR requirements for products designed to the IS-95/98 standards. The quiescent current of the PA/Duplexer is set by the base-band processor using a 1-bit bias control (Vmode) to minimize battery consumption and maximize talk time.

TriQuint's multilayer laminate technology provides low loss interconnect and optimized match between the duplexer, PA and filter enabling the TQM613017 to achieve typically 430 mA current consumption at maximum output power (+25.5dBm). The small 8.0 * 5.0 mm module replaces four separate components requiring less board space. TQM613017 provides handset designers with a simple to use surface mount module requiring minimal external circuitry in the new generation of small and light phones.
