Features: • >20 Gb/s aggregate BW• 1.25 Gb/s/port NRZ data rate• Non-blocking architecture• 500 ps delay match• Differential ECL-level data I/O; CMOS-level control inputs• Low jitter and signal skew• Fully differential data path• Double buffered c...
TQ8015: Features: • >20 Gb/s aggregate BW• 1.25 Gb/s/port NRZ data rate• Non-blocking architecture• 500 ps delay match• Differential ECL-level data I/O; CMOS-level control i...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Parameter |
Absolute Max. Rating |
Notes |
TSTOR |
Storage Temperature |
65° C to +150° C |
|
TCH |
Junction (Channel) Temperature |
65° C to +150° C |
1 |
TC |
Case Temperature Under Bias |
65° C to +125° C |
2 |
VCC |
Supply Voltage |
0 V to +7 V |
3 |
VEE |
Supply Voltage |
7 V to 0 V |
3 |
VTT |
Load Termination Supply Voltage |
VEE to 0 V |
4 |
VIN |
Voltage Applied to Any ECL Input; Continuous |
VEE 0.5 V to +0.5 V |
|
IIN |
Current Into Any ECL Input; Continuous |
1.0 mA to +1.0 mA |
|
VIN |
Voltage Applied to Any CMOS Input; Continuous |
0.5 V to VCC +0.5 V |
|
IIN |
Current Into Any CMOS Input; Continuous |
1.0 mA to +1.0 mA |
|
VOUT |
Voltage Applied to Any ECL Output |
VEE 0.5 V to +0.5 V |
4 |
IOUT |
Current From Any ECL Output; Continuous |
40 mA |
|
PD |
Power Dissipation per Output POUT = (GND VOUT) x IOUT |
50 mW |

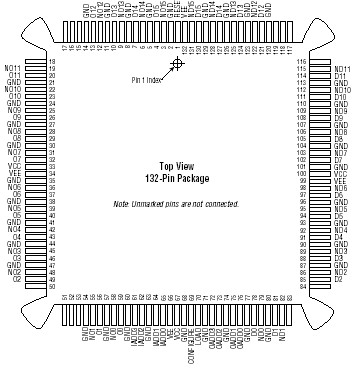

The TQ8015 is a non-blocking 16 x 16 digital crosspoint switch capable of data rates greater than 1.25 Gigabits per second per port. Utilizing a fully differential internal data path and ECL I/O, the TQ8015 offers a high data rate with exceptional signal fidelity. The symmetrical switching and noise rejection characteristics inherent in differential logic result in low jitter and signal skew. The TQ8015 is ideally suited for digital video, data communications and telecommunication switching applications.
The non-blocking architecture of TQ8015 uses 16 fully independent 16:1 multiplexers (see diagram on page 2), allowing each output port to be independently programmed to any input port. The switch is configured by sequentially loading each multiplexer's 4-bit program latch (OA0:3) with the desired input port address (IA0:3) and enabling the LOAD pin. When complete, the CONFIGURE pin of TQ8015 is strobed and all new configurations are simultaneously transferred into the switch multiplexers. Data integrity is maintained on all unchanged data paths.
