TQ5M44

Features: · Single 1V operation· Low Current Operation· Few external components· High IP3· Broadband Performance· Small SOT 23-6 Plastic PackageApplication· FLEXTM wireless applications· ReFLEXTM wireless applicationsPinoutSpecifications Parameter Min Max Units ...

product image

TQ5M44 Picture
See larger image
SeekIC No. : 004527820 Detail

TQ5M44: Features: · Single 1V operation· Low Current Operation· Few external components· High IP3· Broadband Performance· Small SOT 23-6 Plastic PackageApplication· FLEXTM wireless applications· ReFLEXTM wi...

TQ5M44 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TQ5M44
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Single 1V operation
· Low Current Operation
· Few external components
· High IP3
· Broadband Performance
· Small SOT 23-6 Plastic Package


Application

· FLEXTM wireless applications
· ReFLEXTM wireless applications


Pinout

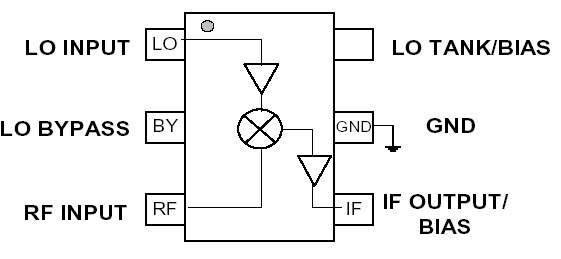

Connection Diagram


Specifications

Parameter
Min
Max
Units
DC Power Supply
0.90
V
Power Dissipation
100
mW
Operating Temperature
-40
+85
C
Storage Temperature
-55
+85
C
Signal Level on
Inputs/Outputs
+20
dBm
Voltage to any Non-Supply
Pin
-0.3
VDD+0.3
V



Description

The TQ5M44 is a RFIC downconverter designed for FLEXTM and ReFLEXTM paging and mobile applications. The TQ5M44 is intended for use in the Motorola Flex chipset. The integrated circuit operates at low voltage (1V).
