RF Mixer High Dynamic Range Mixer/Downconverter
TQ5M31: RF Mixer High Dynamic Range Mixer/Downconverter
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Package / Case : | SOT-23-6 | Packaging : | Reel |
Parameter |
Value |
Units |
DC Power Supply |
5.0 |
V |
Power Dissipation |
500 |
mW |
Operating Temperature |
-40 to 85 |
C |
Storage Temperature |
-60 to 150 |
C |
Signal level on inputs/outputs |
+20 |
dBm |
Voltage to any non supply pin |
+.3 |
V |

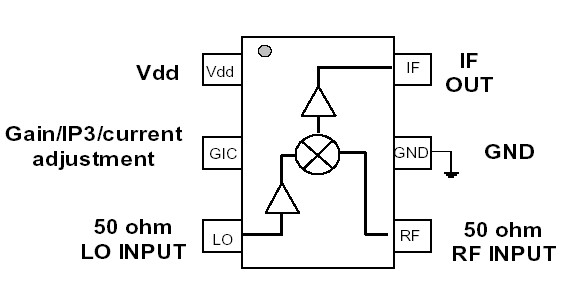

The TQ5M31 is a general purpose RFIC mixer downconverter designed for multiple applications including worldwide cellular and PCS mobile phones, ISM bands, GPS receivers, L band satellite terminals, WLAN and pagers. The TQ5M31 is usable for applications with an RF frequency range from 500 to 2500 MHz, and an IF output range from 45 to 500 MHz. The integrated circuit TQ5M31 requires minimal off-chip matching, while allowing for the maximum application flexibility. Low current drain makes this part ideal for portable, battery operated applications. The output third order intercept efficiency is very high.
Technical/Catalog Information | TQ5M31 |
Vendor | Triquint Semiconductor Inc |
Category | RF and RFID |
RF Type | Cellular, GPS, ISM, PCS |
Package / Case | SOT-23-6 |
Frequency | 500MHz ~ 2.5GHz |
Packaging | Tape & Reel (TR) |
Drawing Number | * |
Gain | 4dB |
Current - Supply | 6mA |
Noise Figure | 8.5dB |
Voltage - Supply | 2.7 V ~ 4 V |
Secondary Attributes | - |
Number of Mixers | 1 |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | TQ5M31 TQ5M31 |
