Features: `Modulation Scheme Optimized to Operate Without a Filter
`1 W Into 8- Speakers (THD+N< 0.4%)
`< 0.08% THD+N at 0.5 W, 1 kHz, Into 8-W Load
`Extremely Efficient 3rd Generation 5-V Class-D Technology:
Low Supply Current (No Filter) . . . 8 mA
Low Supply Current (Filter) . . . 15 mA
Low Shutdown Current . . . 1 A
Low Noise Floor . . . 56 VRMS
Maximum Efficiency Into 8 , 75 85%
4 Internal Gain Settings . . . 8 23.5 dB
PSRR . . . 77 dB
`Integrated Depop Circuitry
`Short-Circuit Protection (Short to Battery, Ground, and Load)

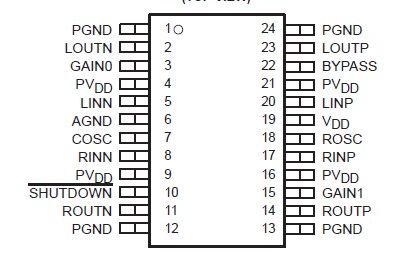

`40°C to 85°C Operating Temperature RangePinout
SpecificationsSupply voltage, VDD, PVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 6 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . 0.3 V to VDD+0.3 V
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . See Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
Operating junction temperature range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 150°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
DescriptionThe TPA2001D2 is the third generation 5-V class-D amplifier from Texas Instruments. Improvements to previous generation devices include: lower supply current, lower noise floor, better efficiency, four different gain settings, smaller packaging, and fewer external components. The most significant advancement with this device is its modulation scheme that allows the amplifier to operate without the output filter. Eliminating the output filter saves the user approximately 30% in system cost and 75% in PCB area.
The TPA2001D2 is a monolithic class-D power IC stereo audio amplifier, using the high switching speed of power MOSFET transistors. These transistors reproduce the analog signal through high-frequency switching of the output stage. The TPA2001D2 is configured as a bridge-tied load (BTL) amplifier capable of delivering greater than 1 W of continuous average power into an 8-W load at less than 0.6% THD+N from a 5-V power supply in the high fidelity range (20 Hz to 20 kHz). With 1 W being delivered to an 8-W load at 1 kHz, the typical THD+N is less than 0.08%.
A BTL configuration eliminates the need for external coupling capacitors on the output. Low supply current of 8 mA makes the device ideal for battery-powered applications. Protection circuitry increases device reliability: thermal, over-current, and under-voltage shutdown.Efficient class-D modulation enables the TPA2001D2 to operate at full power into 8- loads at an ambient mperature of 85°C.
