TPA2000D1

`Modulation Scheme Optimized to Operate Without a Filter
`2 W Into a 4-Ω Speaker (THD+N<1%)
`<0.2% THD+N at 1.5 W, 1 kHz, Into a 4-Ω Load
`Extremely Efficient Third Generation 5-V Class-D Technology:
    -Low-Supply Current (No Filter) . . .. . . . . .. . .4 mA
    -Low-Supply Current (Filter) . .. . . .. . . . . .. . .7.5 mA
    -Low-Shutdown Current . . .. . . .. . . . ... . 0.05 µA
    -Low-Noise Floor . . . 40 µV_RMS (No-Weighting Filter)
    -Maximum Efficiency Into 8 Ω, 75 85 %
    -4 Internal Gain Settings . . . 6 23.5 dB
    -PSSR . . . 77 dB
`Integrated Depop Circuitry
`Short-Circuit Protection (Short to Battery,Ground, and Load)
`40°C to 85°C Operating Temperature Range

Supply voltage, V_DD, P_VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 5.5 V
Input voltage, V_I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to V_DD +0.3 V
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(see Dissipation Rating Table)
Operating free-air temperature range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .40°C to 85°C
Operating junction temperature range, T_J . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .40°C to 150°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C

The TPA2000D1 is a 2-W mono bridge-tied-load (BTL) class-D amplifier designed to drive a speaker with at least 4-Ω impedance. The amplifier uses TI's  third generation modulation technique, which results in improved efficiency and SNR. TPA2000D1 also allows the TPA2000D1 device to be connected directly to the speaker   without the use of the LC output filter commonly associated with class-D amplifiers (this will result in EMI which must be shielded at the system level). These features make the device ideal for use in devices where high-efficiency is needed to extend battery run time.

The gain of the TPA2000D1 amplifier is controlled by two input terminals, GAIN1, and GAIN0. This allows the amplifier to be configured for a gain of 6, 12, 18, and 23.5 dB. The differential input terminals are high-impedance CMOS inputs, and can be used as summing nodes.

The class-D BTL amplifier includes depop circuitry to reduce the amount of turnon pop at power up, and when cycling SHUTDOWN.

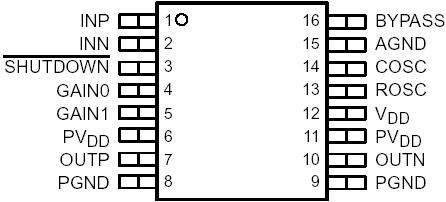

The TPA2000D1 is available in the 16-pin TSSOP package (PW) which is capable of driving 2-W continuous output power level into a 4-Ω load. TPA2000D1 operates over an ambient temperature range of 40°C to 85°C.
