TMS470R1A256

Features: ` High-Performance Static CMOS Technology Standard CAN Controller (SCC)` TMS470R1x 16/32-Bit RISC Core ` 16-Mailbox Capacity (ARM7TDMI™) ` Fully Compliant With CAN Protocol, 24-MHz System Clock (48-MHz Pipeline Version 2.0B Mode) Class II Serial Interface (C2SIb) Independent 16...

product image

TMS470R1A256 Picture
See larger image
SeekIC No. : 004525142 Detail

TMS470R1A256: Features: ` High-Performance Static CMOS Technology Standard CAN Controller (SCC)` TMS470R1x 16/32-Bit RISC Core ` 16-Mailbox Capacity (ARM7TDMI™) ` Fully Compliant With CAN Protocol, 24-MHz...

TMS470R1A256 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMS470R1A256
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High-Performance Static CMOS Technology
      Standard CAN Controller (SCC)
` TMS470R1x 16/32-Bit RISC Core
` 16-Mailbox Capacity (ARM7TDMI™)
` Fully Compliant With CAN Protocol,
    24-MHz System Clock (48-MHz Pipeline Version 2.0B Mode)
    Class II Serial Interface (C2SIb)
    Independent 16/32-Bit Instruction Set
` Two Selectable Data Rates
    Open Architecture With Third-Party Support
` Normal Mode 10.4 Kbps and 4X Mode 41.6
    Built-In Debug Module Kbps
    Big-Endian Format Utilized
` High-End Timer (HET)
` Integrated Memory
      16 Programmable I/O Channels:
    256K-Byte Program Flash
` 14 High-Resolution Pins
` One Bank With 14 Contiguous Sectors
` 2 Standard-Resolution Pins
` Internal State Machine for Programming
    High-Resolution Share Feature (XOR) and Erase
    High-End Timer RAM
    12K-Byte Static RAM (SRAM)
` 64-Instruction Capacity
` Operating Features ` 10-Bit Multi-Buffered ADC (MibADC)
    Core Supply Voltage (VCC): 1.81 V2.05 V 16-Channel
    I/O Supply Voltage (VCCIO): 3.0 V3.6 V
    64-Word FIFO Buffer
    Low-Power Modes: STANDBY and HALT
    Single- or Continuous-Conversion Modes
    Industrial Temperature Ranges
    1.55 ms Minimum Sample and Conversion
` 470+ System Module Time
    32-Bit Address Space Decoding
    Calibration Mode and Self-Test Features
    Bus Supervision for Memory and
` Eight External Interrupts Peripherals
` Flexible Interrupt Handling
    Analog Watchdog (AWD) Timer
` 11 Dedicated GIO Pins, 1 Input-Only GIO Pin,
    Real-Time Interrupt (RTI) and 38 Additional Peripheral I/Os (A256)
    System Integrity and Failure Detection
` External Clock Prescale (ECP) Module
` Zero-Pin Phase-Locked Loop (ZPLL)-Based Programmable Low-Frequency External Clock Module With Prescaler Clock (CLK)
     Multiply-by-4 or -8 Internal ZPLL Option
` Compatible ROM Device
    ZPLL Bypass Mode
` On-Chip Scan-Base Emulation Logic, IEEE Standard 1149.1 (JTAG) Test-Access Port (1)
` Six Communication Interfaces:
    Two Serial Peripheral Interfaces (SPIs)
` 100-Pin Plastic Low-Profile Quad Flatpack (PZ Suffix)
` 255 Programmable Baud Rates
    Two Serial Communications Interfaces (SCIs) (1) The test-access port is compatible with the IEEE Standard
` 224 Selectable Baud Rates 1149.1-1990, IEEE Standard Test-Access Port and Boundary Scan Architecture. Boundary scan is not supported on this
` Asynchronous/Isosynchronous Modes device.


Pinout

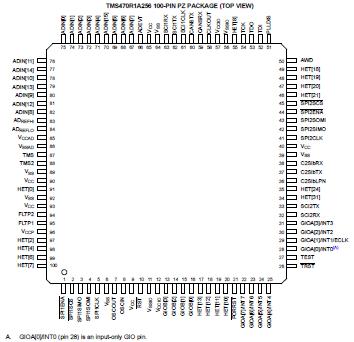

Connection Diagram


Specifications

Supply voltage ranges: VCC , VCCF(2) ................................................-0.3 V to 2.5
Supply voltage ranges: VCCIO, VCCAD, VCCP (Flash pump)(2)......... -0.3 V to 4.1V
Input voltage range: All input pins .......................................................-0.3 V to 4.1
Input clamp current: IIK (VI < 0 or VI > VCCIO) ..........................................±20 mA
All pins except ADIN[0:15], PORRST,TRST, TEST and TCK
IIK (VI < 0 or VI > VCCAD) ...........................................................................±10 mA
ADIN[0:11]
Operating free-air temperature ranges, TA: .........................................-40 to 85
Operating junction temperature range, TJ ..........................................-40 to 150
Storage temperature range, Tstg .......................................................-65 to 150

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to their associated grounds.


Description

The TMS470R1A256(1) devices are members of the Texas Instruments TMS470R1x family of general-purpose 16/32-bit reduced instruction set computer (RISC) microcontrollers. The A256 microcontroller offers high performance utilizing the high-speed ARM7TDMI 16/32-bit RISC central processing unit (CPU), resulting in a high instruction throughput while maintaining greater code efficiency. The ARM7TDMI 16/32-bit RISC CPU views memory as a linear collection of bytes numbered upwards from 0. The TMS470R1A256 utilizes the big-endian format where the most significant byte of a word is stored at the lowest numbered byte and the least significant byte at the highest numbered byte.

High-end embedded control applications demand more performance from their controllers while maintaining low costs. The A256 RISC core architecture offers solutions to these performance and cost demands while maintaining low power consumption.
The A256 device contains the following:
· ARM7TDMI 16/32-Bit RISC CPU
· TMS470R1x system module (SYS) with 470+ enhancements
(1) Throughout the remainder of this document, the TMS470R1A256 device name will be referred to as either the full device name, TMS470R1A256, or as A256.
