Product Details

Description



Features:

` Organization . . . 4194304 by 16 Bits
` Single 3.3-V Power Supply (± 0.3 V Tolerance)
` Performance Ranges:
                            ACCESS ACCESS ACCESS EDO
                              TIME    TIME   TIME   CYCLE
                              tRAC    tCAC    tAA     tHPC
                              MAX     MAX     MAX     MIN
     '46x169/P-50  50 ns  13 ns  25 ns  20 ns
     '46x169/P-60  60 ns  15 ns  30 ns  25 ns
` Extended-Data-Out (EDO) Operation
` xCAS-Before-RAS (xCBR) Refresh
` Long Refresh Period and Self-Refresh Option (TMS46x169P)
` 3-State Unlatched Output
` Low Power Dissipation
` High-Reliability Plastic 50-Lead 400-Mil-Wide Surface-Mount Thin Small-Outline Package (TSOP) (DGE Suffix)
` Operating Free-Air Temperature Range 0°C to 70°C


Pinout

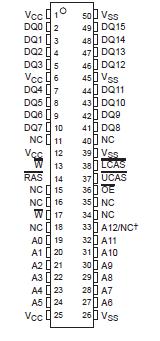

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Voltage range on any pin (see Note 1): . . . . . . . . . . . . . . 0.5 V to 4.6 V
Short-circuit output current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 1 W
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . 0 to 70
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . 55 to 125

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltage values are with respect to VSS.


Description

The and TMS465169 is a high-speed, 67108864-bit dynamic random-access memory (DRAM) device organized as 4194304 words of 16 bits. The TMS465169P is similar DRAM but includes a long refresh period and a self-refresh option. Both employ state-of-the-art technology for high performance, reliability, and low power at low cost.
