Product Details

Description



Features:

Organization...1048576 by 16 Bits
Single 5-V Power Supply (± 10% Tolerance)
1024-Cycle Refresh in 16 ms
Performance Ranges:
                                             ACCESS   ACCESS    ACCESS   READ/
                                             TIME        TIME         T IME      WRITE
                                             t RAC       t CAC         t AA         CYCLE
                                            MAX         MAX           MAX        MIN
'418160A-50                     50 ns       13 ns        25 ns       90 ns
'418160A-60                     60 ns       15 ns        30 ns       110 ns
'418160A-70                     70 ns       18 ns        35 ns       130 ns
Enhanced Page-Mode Operation With xCAS-Before-RAS (xCBR) Refresh
3-State Unlatched Output
Low Power Dissipation
High-Reliability Plastic 42-Lead 400-Mil-Wide Surface-Mount Small-Outline J-Lead (SOJ) Package (DZ Suffix)
Ambient Temperature Range 0°C to 70°C



Pinout

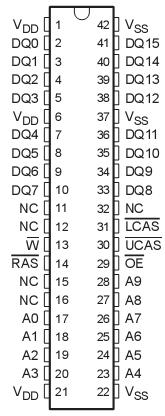

Connection Diagram


Specifications

Supply voltage range, VDD . . . . . . . . . . . . . . . . . . . . 1 V to 7 V
Voltage range on any pin (see Note 1) . . . . . . . . . .  1 V to 7 V
Short-circuit output current . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 W
Ambient temperature range, TA . . . . . . . . . . . . . . . . . . 0to 70
Storage temperature range, Tstg . . . . . . . . . . . . . .55to 125



Description

The TMS418160A is a 16777216-bit dynamic random-access memory (DRAM) device orga-nized as 1048576 words of 16 bits. It employs state-of-the-art technology for high performance,reliability, and low power at low cost.This device features maximum RAS access times of 50-, 60-, and 70 ns. All address and data-in lines are latched on chip to simplify system design.Data out is unlatched to allow greater system flexibility.

The TMS418160A is offered in a 42-lead plastic surface-mount SOJ package (DZ suffix). This package is designed for operation from 0° to 70°C.
