Features:

` Organization . . . 2097152 * 8
` Single 5 V Power Supply (±10% Tolerance)
` Performance Ranges:
          ACCESS ACCESS ACCESS EDO
          TIME TIME TIME CYCLE
          tRAC tCAC tAA tHPC
          MAX MAX MAX MIN
  '41x809-60 60 ns 15 ns 30 ns 25 ns
  '41x809-70 70 ns 18 ns 35 ns 30 ns
  '41x809-80 80 ns 20 ns 40 ns 35 ns
` Extended Data Out (EDO) Operation
` CAS-Before-RAS (CBR) Refresh
` High-Impedance State Unlatched Output
` High-Reliability Plastic 28-Lead (DZ Suffix) 400-Mil-Wide Surface-Mount Small-Outline J-Lead (SOJ) Package
` Operating Free-Air Temperature Range 0°C to 70°C
` Fabricated Using Enhanced Performance Implanted CMOS (EPICE) Technology by Texas Instruments (TIE)


Pinout

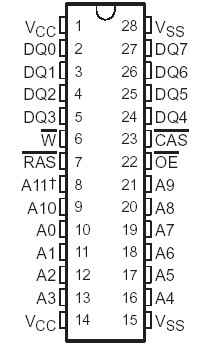

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 V to 7 V
Voltage range on any pin (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 1 V to 7 V
Short-circuit output current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .1 W
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . .  . . . . .0°C to 70°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 125°C


Description

The TMS416809 series is a set of high-speed, 16777216-bit dynamic random-access memories (DRAMs) organized as 2097152 words of eight bits each. It employs TI's state-of-the-art EPIC technology for high performance, reliability, and low power.

These devices feature maximum RAS access times of 60 ns, 70 ns, and 80 ns. All addresses and data-in lines are latched on chip to simplify system design. Data out is unlatched to allow greater system flexibility.

The TMS416809 is offered in a 28-lead plastic surface-mount SOJ package (DZ suffix). This package is characterized for operation from 0°C to 70°C.
