Features: ` CMOS/EEPROM/EPROM Technologies on a Single Device
Mask-ROM Devices for High-Volume Production
One-Time-Programmable (OTP) EPROM Devices for Low Volume Production
Reprogrammable EPROM Devices for Prototyping Purposes
` Internal System Memory Configurations
On-Chip Program Memory Versions
ROM: 4K Bytes
EPROM: 8K Bytes
Static RAM: 128 Bytes
` Flexible Operating Features
Low-Power Modes: STANDBY and HALT
Commercial, Industrial, and Automotive Temperature Ranges
Clock Options
Divide-by-4 (0.5 to 5 MHz SYSCLK)
Divide-by-1 (2 to 5 MHz SYSCLK) PLL
Supply Voltage (VCC) 5 V ±10%
` Four-Channel 8-Bit Analog-to-Digital Converter 2 (ADC2)
` 16-Bit General-Purpose Timer
Software Configurable as
a 16-Bit Event Counter, or
a 16-Bit Pulse Accumulator, or
a 16-Bit Input Capture Function, or
Two Compare Registers, or a Self-Contained
Pulse-Width-Modulation (PWM) Function
` On-Chip 24-Bit Watchdog Timer
EPROM/OTP Devices: Standard Watchdog
Mask-ROM Devices: Hard Watchdog, Simple Counter, or Standard Watchdog
` Flexible Interrupt Handling
` Workstation/Personal Computer-Based Development System
C Compiler and C Source Debugger
Real-Time In-Circuit Emulation
Extensive Breakpoint/Trace Capability
Software Performance Analysis
Multi-Window User Interface
Microcontroller Programmer
` Serial Communications Interface 2 (SCI2)
Asynchronous Mode: 156 Kbps Maximum at 5 MHz SYSCLK
Full Duplex, Double-Buffered Receiver (RX) and Transmitter (TX)
` TMS370 Series Compatibility
Register-to-Register Architecture
256 General-Purpose Registers
14 Powerful Addressing Modes
Instructions Upwardly Compatible With All TMS370 Devices
` CMOS/TTL Compatible I/O Pins/Packages
All Peripheral Function Pins Software Configurable for Digital I/O
17 Bidirectional Pins, 5 Input Pins

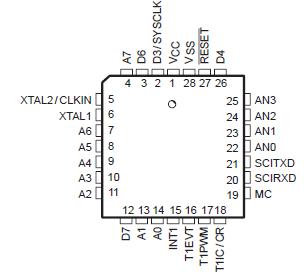

28-Pin Plastic and Ceramic Dual-In-Line, or Leaded Chip Carrier PackagesPinout
SpecificationsSupply voltage range,VCC (see Note 2) . . . . . . . . . . . . 0.6 V to 7 V
Input voltage range, All pins except MC . . . . . . . . . . . . .0.6 V to 7 V
MC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 14 V
Input clamp current, IIK (VI < 0 or VI > VCC) . . . . . . . . . . .. .. ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . .. ±20 mA
Continuous output current per buffer, IO (VO = 0 to VCC) . . . ±10 mA
Maximum ICC current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 mA
Maximum ISS current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 mA
Continuous power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . 500 mW
Operating free-air temperature range, TA: L version . . . 0°C to 70°C
A version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 40°C to 85°C
T version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 105°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 2. Unless otherwise noted, all voltage values are with respect to VSS.
3. Electrical characteristics are specified with all output buffers loaded with specified IO current. Exceeding the specified IO current in any buffer can affect the levels on other buffers.
DescriptionThe TMS370C3C0, TMS370C6C2, and SE370C6C2 devices are members of the TMS370 family of single-chip 8-bit microcontrollers. Unless otherwise noted, the term TMS370CxCx refers to these devices. The TMS370 family provides cost-effective real-time system control through integration of advanced peripheral function modules and various on-chip memory configurations.
The TMS370CxCx family of devices is implemented using high-performance silicon-gate CMOS EPROM technologies. Low-operating power, wide-operating temperature range, and noise immunity of CMOS technology coupled with the high performance and extensive on-chip peripheral functions make the TMS370CxCx devices attractive in system designs for automotive electronics, industrial motors, computer peripheral controls, telecommunications, and consumer applications.
All TMS370CxCx devices contain the following on-chip peripheral modules:
·Four-channel, 8-bit analog to digital converter 2 (ADC2)
·Serial communications interface 2 (SCI2)
·One 24-bit general-purpose watchdog timer
·One 16-bit general-purpose timer with an 8-bit prescaler
