Features: `CMOS/EEPROM/EPROM Technologies on a Single Device
Mask-ROM Devices for High-Volume Production
One-Time-Programmable (OTP) EPROM
Devices for Low-Volume Production
Reprogrammable-EPROM Devices for Prototyping Purposes
`Internal System Memory Configurations
On-Chip Program Memory Versions
ROM: 16K Bytes
EPROM: 16K Bytes
Data EEPROM: 256 Bytes
Static RAM: 256 Bytes Usable as Registers
Standby RAM With Separate Power Supply Pin: 256 Bytes
`Flexible Operating Features
Low-Power Modes: STANDBY and HALT
Commercial, Industrial, and Automotive Temperature Ranges
Clock Options
Divide-by-1 (2 MHz5 MHz SYSCLK) Phase-Locked Loop (PLL)
Divide-by-4 (0.5 MHz5 MHz SYSCLK)
Supply Voltage (VCC) 5 V ±10%
`Programmable Acquisition and Control Timer (PACT) Module
Input Capture on up to Six Pins, Four of Which Can Have a Programmable Prescaler
One Input Capture Pin Can Drive an 8-Bit Event Counter
Up to Eight Timer-Driven Outputs
Interaction Between Event Counter and Timer Activity
18 Independent Interrupt Vectors
Watchdog With Selectable Time-Out Period
Asynchronous Mini Serial Communication Interface (Mini SCI)
`Flexible Interrupt Handling
Two Software-Programmable Interrupt Levels
Global- and Individual-Interrupt Masking
Programmable Rising- or Falling-Edge Detect
Individual-Interrupt Vectors
`Serial Peripheral Interface (SPI)
Variable-Length High-Speed Shift Register
Synchronous Master/Slave Operation
`Eight Channel 8-Bit Analog-to-Digital Converter 1 (ADC1)
`TMS370 Series Compatibility
Register-to-Register Architecture
256 General-Purpose Registers
14 Powerful Addressing Modes
Instructions Upwardly Compatible With All TMS370 Devices
`CMOS/TTL Compatible I/O Pins/Packages
All Peripheral Function Pins Software Configurable for Digital I/O
16 Bidirectional Pins, Nine Input Pins
44-Pin Plastic and Ceramic Leaded Chip Carrier (LCC) Packages
`Workstation/PC-Based Development System
C Compiler and C Source Debugger
Real-Time In-Circuit Emulation
Multi-Window User Interface

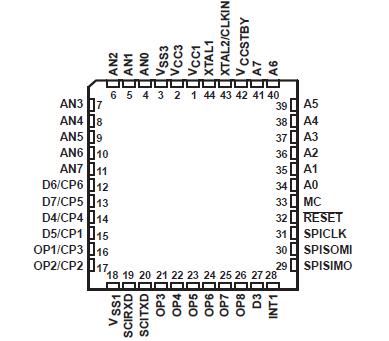

Microcontroller ProgrammerPinout
Specificationsabsolute maximum ratings over operating free-air temperature range (unless otherwise noted)†
Supply voltage range,VCC1 (see Note 4) . . . . . . . . . . . . . . . . . . . . . 0.6 V to 7 V
Input voltage range, All pins except MC . . . . . . . . . . . . . . . . . . . . . . 0.6 V to7 V
MC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . 0.6 V to 14 V
Input clamp current, IIK (VI < 0 or VI > VCC) . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . .. ±20 mA
Continuous output current per buffer, IO (VO = 0 to VCC)) (see Note 5) . . ±10 mA
Maximum ICC current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 mA
Maximum ISS current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 mA
Continuous power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .. . . . . 1 W
Operating free-air temperature, TA: L version . . . . . . . . . . . . . . . . . . 0°C to 70°C
A version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. 40°C to 85°C
T version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. 40°C to 105°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . .. 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 4. Unless otherwise noted, all voltage values are with respect to VSS1.
5. Electrical characteristics are specified with all output buffers loaded with specified IO current. Exceeding the specified IO current in any buffer can affect the levels on other buffers.
DescriptionThe TMS370C036, TMS370C736, and SE370C736 devices are members of the TMS370 family of single-chip 8-bit microcontrollers. Unless otherwise noted, the term TMS370Cx36 refers to these devices. The TMS370 family provides cost-effective real-time system control through advanced peripheral-function modules and various on-chip memory configurations.
The TMS370Cx36 family of devices uses high-performance silicon-gate CMOS EPROM and EEPROM technologies. Low operating power, wide operating temperature range, and noise immunity of CMOS technology coupled with the high performance and extensive on-chip peripheral functions make the TMS370Cx36 devices attractive for system designs for automotive electronics, industrial motors, computer peripheral controls, telecommunications, and consumer applications.
All TMS370Cx36 devices contain the following on-chip peripheral modules:
`Programmable acquisition and control timer (PACT)
Asynchronous mini SCI
PACT watchdog timer
`Serial peripheral interface (SPI)
`Eight channel, 8-bit analog-to-digital converter 1 (ADC1)
TMS370Cx36 Data Sheet
