Features: ` CMOS/EEPROM/EPROM Technologies ona Single Device
Mask-ROM Devices for High-Volume Production
One-Time-Programmable (OTP) EPROM Devices for Low-Volume Production
Reprogrammable-EPROM Devices for Prototyping Purposes
` Internal System Memory Configurations
On-Chip Program Memory Versions
ROM: 2K, 4K, or 8K Bytes
EPROM: 8K Bytes
Data EEPROM: 256 Bytes
Static RAM: 128 or 256 Bytes Usable as Registers
` Flexible Operating Features
Low-Power Modes: STANDBY and HALT
Commercial, Industrial, and Automotive Temperature Ranges
Clock Options
Divide-by-1 (2 MHz5 MHz SYSCLK) Phase-Locked Loop (PLL)
Divide-by-4 (0.5 MHz5 MHz SYSCLK)
Supply Voltage (VCC) 5 V ±10%
` 16-Bit General Purpose Timer
Software Configurable as
a 16-Bit Event Counter, or
a 16-Bit Pulse Accumulator, or
a 16-Bit Input Capture Functions, or
Two Compare Registers, or a
Self-Contained PWM Function
Software Programmable Input Polarity
8-Bit Prescaler, Providing a 24-Bit Real-Time Timer
` On-Chip 24-Bit Watchdog Timer
EPROM/OTP Devices:
EPROM '712A Standard Watchdog
EPROM '712B Hard Watchdog
Mask-ROM Devices: Hard Watchdog, Simple Counter, or Standard Watchdog
` Flexible Interrupt Handling
Two Software Programmable Interrupt Levels
Global-and Individual-Interrupt Masking
Programmable Rising- or Falling-Edge Detect
Individual Interrupt Vectors
` Serial Peripheral Interface (SPI)
Variable-Length High-Speed Shift Register
Synchronous Master/Slave Operation
` TMS370 Series Compatibility
Register-to-Register Architecture
128 or 256 General-Purpose Registers
14 Powerful Addressing Modes
Instructions Upwardly Compatible With All TMS370 Devices
` CMOS/TTL Compatible I/O Pins/Packages
All Peripheral Function Pins Software Configurable for Digital I/O
21 Bidirectional Pins, 1 Input Pin
28-Pin Plastic and Ceramic DIP, or Leaded Chip Carrier (LCC) Packages
` Workstation/PC-Based Development System
C Compiler and C Source Debugger
Real-Time In-Circuit Emulation
Extensive Breakpoint/Trace Capability
Multi-Window User Interface

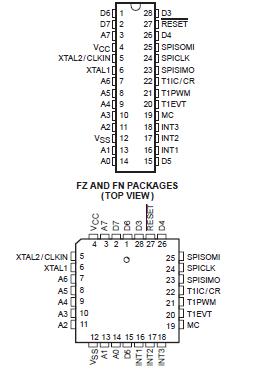

Microcontroller ProgrammerPinout
SpecificationsSupply voltage range,VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 7 V
Input voltage range, All pins except MC . . . . . . . . . . . . . . . . . . . . .. .0.6 V to 7 V
MC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... 0.6 V to 14 V
Input clamp current, IIK (VI < 0 or VI > VCC) . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . ±20 mA
Continuous output current per buffer, IO (VO = 0 to VCC)) (see Note 2) . ... ±10 mA
Maximum ICC current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 170 mA
Maximum ISS current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 mA
Continuous power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 mW
Operating free-air temperature range, TA: L version . . . . . . . . . . . . . .0°C to 70°C
A version . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . 40°C to 85°C
T version . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 40°C to 105°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . .. . . . . .65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. Unless otherwise noted, all voltage values are with respect to VSS.
2. Electrical characteristics are specified with all output buffers loaded with specified IO current. Exceeding the specified IO current in any buffer can affect the levels on other buffers.
DescriptionThe TMS370C010, TMS370C012, TMS370C311, TMS370C310, TMS370C312, TMS370C712, and SE370C712 devices are members of the TMS370 family of single-chip 8-bit microcontrollers. Unless otherwise noted, the term TMS370Cx1x refers to these devices. The TMS370 family provides cost-effective real-time system control through integration of advanced peripheral-function modules and various on-chip memory configurations.
The TMS370Cx1x family of devices is implemented using high-performance silicon-gate CMOS EPROM and EEPROM technologies. Low-operating power, wide-operating temperature range, and noise immunity of CMOS technology coupled with the high performance and extensive on-chip peripheral functions make the TMS370Cx1x devices attractive for system designs for automotive electronics, industrial motors, computer peripheral controls, telecommunications, and consumer applications.
All TMS370Cx1x devices contain the following on-chip peripheral modules:
·Serial peripheral interface (SPI)
·One 24-bit general-purpose watchdog timer
·One 16-bit general-purpose timer with an 8-bit prescaler
