TMS34094

PinoutSpecificationsSupply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 VInput voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 VOutput voltage range, VO . . . . . . . . . . . . . . . . . . . . . ...

product image

TMS34094 Picture
See larger image
SeekIC No. : 004525032 Detail

TMS34094: PinoutSpecificationsSupply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 VInput voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . ...

TMS34094 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMS34094
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

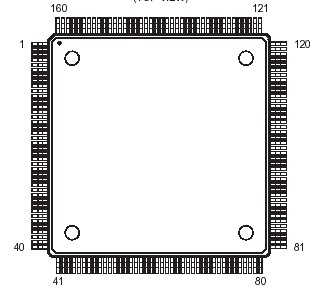

Connection Diagram




Specifications

Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input clamp current, IIK (VI < 0 or VI > VCC) . . . . . . . . . . . . . . . . . . . . . . . . ± 20 mA
Output clamp current , IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . .. . . . . . .± 20 mA
Continuous output current, (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . .. . .± 25 mA
Operating free-air temperature range: . . . . . . . . . . . . . . . . . . . . . . . . .0 °C to 55 °C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 °C to 150 °C




Description

The TMS34094 ISA Bus Interface device, a peripheral device for the TMS34020 Graphics Processor, facilitates the design of a high-performance graphics system for use in an ISA Bus-compatible PC. The device decodes ISA Bus cycles and controls the TMS34020 host interface to enable read and write accesses to the TMS34020's local memory. In addition, the TMS34094 allows the host to access the TMS34020's local memory via either I/O-mapped or memory-mapped ISA Bus accesses. The capability is software configurable, simplifying design and reducing system cost.
