TMS320LF2401A

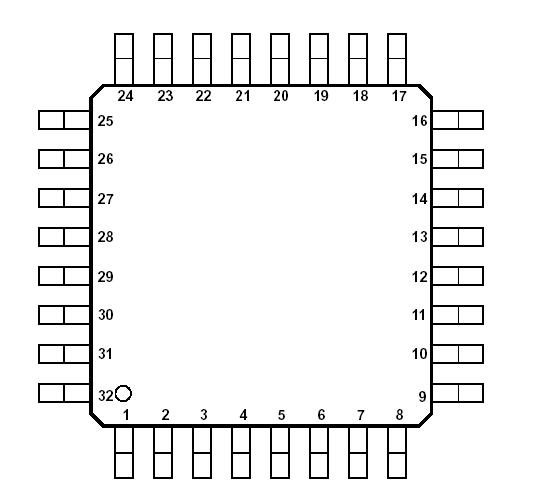

The TMS320LF2401A device, a new member of the TMS320C24x generation of digital signal processor (DSP) controllers, is part of the TMS320C2000^TM platform of fixed-point DSPs. The TMS320LF2401A device offers the enhanced TMS320^TM DSP architectural design of the C2xx core CPU for low-cost, low-power, and high-performance processing capabilities. Several advanced peripherals, optimized for digital motor and motion control applications, have been integrated to provide a true single-chip DSP controller. While code-compatible with the existing 240x and C24x^TM DSP controller devices, the TMS320LF2401A offers increased processing performance (40 MIPS) and a higher level of peripheral integration. See the Device Summary section for device-specific features.

The TMS320LF2401A device offers a peripheral suite tailored to meet the specific price/performance points required by various applications. The TMS320LF2401A also offers a cost-effective reprogrammable solution for volume production. A password-based "code security" feature on the device is useful in preventing unauthorized duplication of proprietary code stored in on-chip Flash. Note that the LF2401A contains a 256-word boot ROM to facilitate in-circuit programming.

The TMS320LF2401A offers an event manager module which has been optimized for digital motor control and power conversion applications. Capabilities of this module include center- and/or edge-aligned PWM generation, programmable deadband to prevent shoot-through faults, and synchronized analog-to-digital conversion. Select EV pins have been provided with an "input-qualifier" circuitry, which minimizes inadvertent pin-triggering by glitches.

The high-performance, 10-bit analog-to-digital converter (ADC) TMS320LF2401A has a minimum conversion time of 500 ns and offers up to 5 channels of analog input. The autosequencing capability of the ADC allows a maximum of 16 conversions to take place in a single conversion session without any CPU overhead.

A serial communications interface (SCI) is integrated on all devices to provide asynchronous communication to other devices in the system. To maximize device flexibility, functional pins are also configurable as general-purpose inputs/outputs (GPIOs).

To streamline development time, JTAG-compliant scan-based emulation has been integrated into all devices. This provides non-intrusive real-time capabilities required to debug digital control systems. A complete suite of code-generation tools from C compilers to the industry-standard Code Composer Studio^TM debugger supports this family. Numerous third-party developers not only offer device-level development tools, but also system-level design and development support.
