TMS320LC206

Features: ` High-Performance Static CMOS Technology` Includes the '320C2xLP Core CPU` TMS320C206, TMS320LC206 are Members of the 'C20x/'C2000 Platform Which Also Includes the TMS320C203/LC203 and TMS320F206 Devices` Instruction-Cycle Time 25 ns at 3.3 V` Source Code Compatible With TMS320C25 and o...

product image

TMS320LC206 Picture
See larger image
SeekIC No. : 004524977 Detail

TMS320LC206: Features: ` High-Performance Static CMOS Technology` Includes the '320C2xLP Core CPU` TMS320C206, TMS320LC206 are Members of the 'C20x/'C2000 Platform Which Also Includes the TMS320C203/LC203 and TM...

TMS320LC206 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMS320LC206
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High-Performance Static CMOS Technology
` Includes the '320C2xLP Core CPU
` TMS320C206, TMS320LC206 are Members of the 'C20x/'C2000 Platform Which Also Includes the TMS320C203/LC203 and TMS320F206 Devices
` Instruction-Cycle Time 25 ns at 3.3 V
` Source Code Compatible With TMS320C25 and other '20x Devices
` Upwardly Code-Compatible With TMS320C5x Devices
` Four External Interrupts
` TMS320C206, 5-V I/O (3.3-V core)
` TMS320LC206, 3.3-V core and I/O
` TMS320C206, TMS320LC206 Integrated Memory:
544 * 16 Words of On-Chip Dual-Access Data RAM
32K * 16 Words of On-Chip ROM
4K * 16 Words of On-Chip Single-Access Program/Data RAM
` 224K * 16-Bit Maximum Addressable External Memory Space
64K Program
64K Data
64K Input/Output (I/O)
32K Global
` 32-Bit Arithmetic Logic Unit (ALU) Accumulator
` 16 * 16-Bit Multiplier With a 32-Bit Product
` Block Moves from Data and Program Space
` TMS320C206, TMS320LC206 Peripherals:
On-Chip 20-Bit Timer
On-Chip Software-Programmable Wait-State (0 to 7) Generator
On-Chip Oscillator
On-Chip Phase-Locked Loop (PLL)
Six General-Purpose I/O Pins
Full-Duplex Asynchronous Serial Port (UART)
Enhanced Synchronous Serial Port (ESSP) With Four-Level-Deep FIFOs
` Input Clock Options
Options: Multiply-by-One, -Two, or -Four,and Divide-by-Two (*1, *2, *4, and /2)
` Support of Hardware Wait States
` Power Down IDLE Mode
` IEEE 1149.1†-Compatible Scan-Based Emulation
` TMS320C206, TMS320LC206 100-Pin PZ Package, Small Thin Quad Flat Package (TQFP)
` Industrial Temperature Version Planned,(40 to85)


Pinout

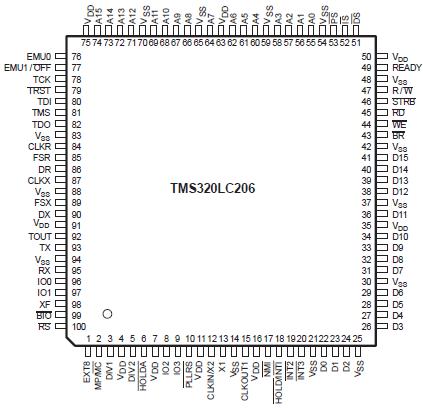

Connection Diagram


Specifications

Supply voltage range, VDD (see Note 1) . . . . . . . . . . . 0.3 V to 4.6 V
Supply voltage range, VDD5 (see Note 1) . . . . .. . . . . . . 0.3 V to 7 V
Input voltage range . . . . . . . . . . . . . . .. . . . . . . . . . . . 0.3 V to 4.6 V
Output voltage range, 'LC206 . . . . . . . . . .  . . . . . . . 0.3 V to 4.6 V
Output voltage range, 'C206 . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Operating free-air temperature range,
            TA (TMS320C206PZ, TMS320LC206PZ) . .. . . . . . . . . 0 to 70
                (TMS320C206PZA, TMS320LC206PZA) . . . . . . 40 to 85
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . 55 to 150
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltage values are with respect to VSS.


Description

The Texas Instruments (TIETM)TMS320C206‡ and TMS320LC206‡ digital signal processors (DSPs) are fabricated with static CMOS integrated-circuit technology. The architectural design is based upon that of the TMS320C20x series and is optimized for low-power operation. The combination of advanced Harvard architecture, on-chip peripherals, on-chip memory, and a highly specialized instruction set is the basis of the operational flexibility and speed of the 'C206
