TMS320F2809

Features: ` High-Performance Static CMOS Technology 100 MHz (10-ns Cycle Time) Low-Power (1.8-V Core, 3.3-V I/O) Design 3.3-V Flash Voltage` JTAG Boundary Scan Support` High-Performance 32-Bit CPU (TMS320C28x) 16 x 16 and 32 x 32 MAC Operations 16 x 16 Dual MAC Harvard Bus Architecture Atom...

product image

TMS320F2809 Picture
See larger image
SeekIC No. : 004524970 Detail

TMS320F2809: Features: ` High-Performance Static CMOS Technology 100 MHz (10-ns Cycle Time) Low-Power (1.8-V Core, 3.3-V I/O) Design 3.3-V Flash Voltage` JTAG Boundary Scan Support` High-Performance 32-Bit CP...

TMS320F2809 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMS320F2809
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High-Performance Static CMOS Technology
   100 MHz (10-ns Cycle Time)
   Low-Power (1.8-V Core, 3.3-V I/O) Design
   3.3-V Flash Voltage
` JTAG Boundary Scan Support
` High-Performance 32-Bit CPU (TMS320C28x)
   16 x 16 and 32 x 32 MAC Operations
   16 x 16 Dual MAC
   Harvard Bus Architecture
   Atomic Operations
   Fast Interrupt Response and Processing
   Unified Memory Programming Model
   Code-Efficient (in C/C++ and Assembly)
` On-Chip Memory
   F2809: 128K X 16 Flash, 18K X 16 SARAM F2808: 64K X 16 Flash, 18K X 16 SARAM F2806: 32K X 16 Flash, 10K X 16 SARAM F2802: 32K X 16 Flash, 6K X 16 SARAM F2801: 16K X 16 Flash, 6K X 16 SARAM 9501: 16K X 16 Flash, 6K X 16 SARAM
   C2802: 32K X 16 ROM, 6K X 16 SARAM C2801: 16K X 16 ROM, 6K X 16 SARAM
   1K x 16 OTP ROM (F280x Only)
` Boot ROM (4K x 16)
    With Software Boot Modes (via SCI, SPI,CAN, I2C, and Parallel I/O)
   Standard Math Tables
` Clock and System Control
   Dynamic PLL Ratio Changes Supported
   On-Chip Oscillator
   Clock-Fail-Detect Mode
   Watchdog Timer Module
` Any GPIO A Pin Can Be Connected to One of the Three External Core Interrupts
` Peripheral Interrupt Expansion (PIE) Block That Supports All 43 Peripheral Interrupts
` 128-Bit Security Key/Lock
   Protects Flash/OTP/L0/L1 Blocks
   Prevents Firmware Reverse Engineering
` Enhanced Control Peripherals
   Up to 16 PWM Outputs
   Up to 4 HRPWM Outputs With 150 ps MEP Resolution (6 HRPWM Outputs on F2809)
   Up to Four Capture Inputs
   Up to Two Quadrature Encoder Interfaces
   Up to Six 32-bit/Six 16-bit Timers
` Three 32-Bit CPU Timers
` Serial Port Peripherals
   Up to 4 Serial Peripheral Interface (SPI) Modules
   U(SpCtIo), 2StSaenrdiaalrdCoUmAmRTunMicoadtuiolenss Interface
   Up to 2 CAN Modules
   One Inter-Integrated-Circuit (I2C) Bus
` 12-Bit ADC, 16 Channels
   2 x 8 Channel Input Multiplexer
   Two Sample-and-Hold
   Single/Simultaneous Conversions
   Fast Conversion Rate: 160 ns/6.25 MSPS(12.5 MSPS on F2809)
   Internal or External Reference
` Up to 35 Individually Programmable,Multiplexed General-Purpose Input/Output(GPIO) Pins With Input Filtering
` Advanced Emulation Features
   Analysis and Breakpoint Functions
   Real-Time Debug via Hardware
` Development Tools Include
   ANSI C/C++ Compiler/Assembler/Linker
   Supports TMS320C24x™/240x Instructions
   Code Composer Studio™ IDE
   DSP/BIOS™
   JTAG Scan Controllers(1)[Texas Instruments (TI) or Third-Party]
   Evaluation Modules
   Broad Third-Party Digital Motor Control Support
` Low-Power Modes and Power Savings
   IDLE, STANDBY, HALT Modes Supported
   Disable Individual Peripheral Clocks
` Package Options
   Thin Quad Flatpack (PZ)
   MicroStar BGA™ (GGM, ZGM)
` Temperature Options:
   A: -40°C to 85°C (PZ, GGM, ZGM)
   S: -40°C to 125°C (PZ, GGM, ZGM)
   Q: -40°C to 125°C (PZ)


Pinout

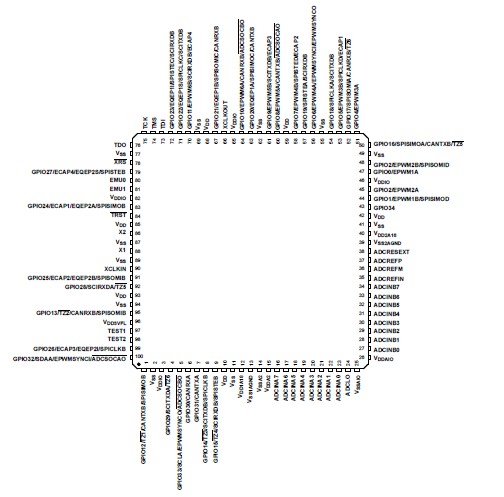

Connection Diagram


Specifications

Supply voltage range, VDDIO, VDD3VFL with respect to VSS - 0.3 V to 4.6 V
Supply voltage range, VDDA2, VDDAIO with respect to VSSA - 0.3 V to 4.6 V
Supply voltage range, VDD with respect to VSS - 0.3 V to 2.5 V
Supply voltage range, VDD1A18, VDD2A18 with respect to VSSA - 0.3 V to 2.5 V
Supply voltage range, VSSA2, VSSAIO, VSS1AGND, VSS2AGND with respect to VSS - 0.3 V to 0.3 V
Input voltage range, VIN   - 0.3 V to 4.6 V
Output voltage range, VO   - 0.3 V to 4.6 V
Input clamp current, IIK (VIN < 0 or VIN > VDDIO)(3)   ± 20 mA
Output clamp current, IOK (VO < 0 or VO > VDDIO)   ± 20 mA
Operating ambient temperature ranges, TA: A version (GGM, PZ)(4) - 40°C to 85°C
TA: S version (GGM, PZ)(4) - 40°C to 125°C
TA: Q version ( PZ)(4) - 40°C to 125°Cv
Junction temperature range, Tj(4)   - 40°C to 150°C
Storage temperature range, Tstg(4)   - 65°C to 150°C
