TMS320F2808

Features: •High-Performance Static CMOS Technology100 MHz (10-nsCycleTime)Low-Power (1.8-VCore,3.3-VI/O) Design3.3-V Flash Voltage•JTAG Boundary Scan Support•High-Performance 32-BitCPU (TMS320C28x)16x16 and 32x32 MAC Operations16x16 Dual MACHarvard Bus ArchitectureAtomic Operatio...

product image

TMS320F2808 Picture
See larger image
SeekIC No. : 004524969 Detail

TMS320F2808: Features: •High-Performance Static CMOS Technology100 MHz (10-nsCycleTime)Low-Power (1.8-VCore,3.3-VI/O) Design3.3-V Flash Voltage•JTAG Boundary Scan Support•High-Performance 32-Bi...

TMS320F2808 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMS320F2808
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•High-Performance Static CMOS Technology
100 MHz (10-nsCycleTime)
Low-Power (1.8-VCore,3.3-VI/O) Design
3.3-V Flash Voltage
•JTAG Boundary Scan Support
•High-Performance 32-BitCPU (TMS320C28x)
16x16 and 32x32 MAC Operations
16x16 Dual MAC
Harvard Bus Architecture
Atomic Operations
Fast Interrupt Response and Processing
Unified Memory Programming Model
Code-Efficient(inC/C++and Assembly)
•On-Chip Memory
F2808:64K X 16 Flash,18K X 16 SARAM
F2806:32K X 16 Flash,10K X 16 SARAM
F2801:16K X 16 Flash,6K X 16 SARAM
9501:16K X 16 Flash,6K X 16 SARAM
1K x 16 OTP ROM
•Boot ROM (4Kx16)
With Software Boot Modes (viaSCI,SPI,CAN,I2C,and Parallel I/O)
Standard Math Tables
•Clock and System Control
Dynamic PLL Ratio Changes Supported
On-Chip Oscillator
Clock-Fail-Detect Mode
Watchdog Timer Module
•Any GPIO A Pin Can Be Connected to One of the Three External Core Interrupts
•Peripheral Interrupt Expansion (PIE) Block That Supports All 43 Peripheral Interrupts
•128-Bit Security Key/Lock
Protects Flash/OTP/L0/L1 Blocks
Prevents Firmware Reverse Engineering
•Enhanced Control Peripherals
Up to 16 PWM Outputs
Up to 4 HRPWM Outputs With 150 ps MEP Resolution
Up to Four Capture Inputs
Up to Two Quadrature Encoder Interfaces
Up to Six 32-bit Timers
Up to Six 16-bit Timers
•Three 32-Bit CPU Timers
•Serial Port Peripherals
Up to 4 Serial Peripheral Interface(SPI) Modules
Up to 2 Serial Communications Interface (SCI),Standard UART Modules
Up to 2 Enhanced Controller Area Network(eCAN) Modules
One Inter-Integrated-Circuit(I2C) Bus
•12-Bit ADC,16 Channels
2 x 8 Channel Input Multiplexer
Two Sample-and-Hold
Single/Simultaneous Conversions
Fast Conversion Rate:160ns/6.25 MSPS
Internal or External Reference
•Up to 35 Individually Programmable,
Multiplexed General-Purpose Input/Output
(GPIO) Pins With Input Filtering
•Advanced Emulation Features
Analysis and Breakpoint Functions
Real-Time Debug via Hardware
•Developmen tTools Include
ANSIC/C++Compiler/Assembler/Linker
Supports TMS320C24 x ™/240x Instructions
Code Composer Studio™IDE
DSP/BIOS™
JTAG Scan Controllers(1)[Texas Instruments(TI)orThird-Party]
Evaluation Modules
Broad Third-Party Digital Motor Control Support
•Low-PowerModesandPowerSavings
IDLE,STANDBY,HALTModesSupported
Disable Individual Peripheral Clocks
•Package Options
Thin Quad Flatpack(PZ)
MicroStar BGA™(GGM,ZGM)
•Temperature Options:
A:-40°Cto85°C(PZ,GGM,ZGM)
S:-40°Cto125°C(PZ,GGM,ZGM)
Q:-40°Cto125°C(PZ)





Pinout

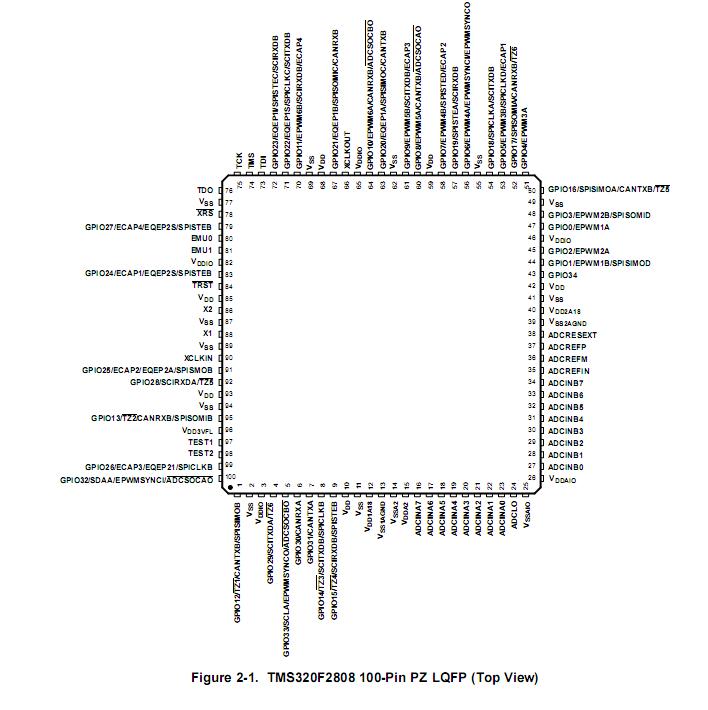

Connection Diagram




Specifications

Supply voltage range,VDDIO,VDD3VFL

with respect toVSS

-0.3Vto4.6V

Supply voltage range,VDDA2,VDDAIO

with respect toVSSA

-0.3Vto4.6V

Supply voltage range,VDD

with respect toVSS

-0.3Vto2.5V

Supplyvoltagerange,VDD1A18,VDD2A18

with respect toVSSA

-0.3Vto2.5V

Supply voltagerange,VSSA2,VSSAIO,VSS1AGND,VSS2AGND

with respect toVSS

-0.3Vto0.3V

Input voltage range,VIN

-0.3Vto4.6V

Output voltage range,VO

-0.3Vto4.6V

Inputclampcurrent,IIK(VIN<0orVIN>VDDIO)(3)

±20mA

Output clamp current,IOK(VO<0orVO>VDDIO)

±20mA

Operating ambient temper atureranges,

TA:Aversion(GGM,PZ)(4)

-40°Cto85°C

TA:Sversion(GGM,PZ)(4)

-40°Cto125°C

TA:Qversion(PZ)(4)

-40°Cto125°C

Junction temperatu rerange,Tj(4)

-40°Cto150°C

Storage temperature range,Tstg(4)

-65°Cto150°C






Description

The TMS320F2808 is one member of the TMS320 family which is designed as the digital signal processors. This device is highly integrated, high-performance solutions for demanding control applications.

Features of the TMS320F2808 are:(1)High-Performance Static CMOS Technology;(2)High-Performance 32-Bit CPU;(3)Six Channel DMA Controller (for ADC, McBSP, XINTF, and SARAM);(4)16-bit or 32-bit External Interface (XINTF):Over 2M x 16 Address Reach;(5)Peripheral Interrupt Expansion (PIE) Block That Supports All 58 Peripheral Interrupts;(6)128-Bit Security Key/Lock;(7)Low-Power Modes and Power Savings;(8)Lead-free Green Packaging;(9)Up to 88 Individually Programmable, Multiplexed GPIO Pins With Input Filteri.

The absolute maximum ratings of the TMS320F2808 can be summarized as:(1)supply voltage I/O range:-0.3 V to 4.0 V;(2)junction temperature range:-40°C to 150°C;(3)input voltage range:-0.3 V to 4.6 V;(4)output voltage range:-0.3 V to 4.6 V;(5)operating case temperature range:-40°C to 85°C;(6)storage temperature range:-65°C to 150°C. If you want to know more information such as the electrical characteristics about the TMS320F2808, please download the datasheet in www.seekic.com or www.chinaicmart.com .
