TMS29F010

Features: ` Single Power Supply 5 V ± 10%` Organization . . . 131072 by 8 Bits` Eight Equal Sectors of 16K BytesAny Combination of Sectors Can Be Erased Any Combination of Sectors Can Be Marked as Read-Only` Compatible With JEDEC EEPROM Command Set` Fully Automated On-Chip Erase and Byte-Program O...

product image

TMS29F010 Picture
See larger image
SeekIC No. : 004524862 Detail

TMS29F010: Features: ` Single Power Supply 5 V ± 10%` Organization . . . 131072 by 8 Bits` Eight Equal Sectors of 16K BytesAny Combination of Sectors Can Be Erased Any Combination of Sectors Can Be Marked as R...

TMS29F010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMS29F010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Single Power Supply 5 V ± 10%
` Organization . . . 131072 by 8 Bits
` Eight Equal Sectors of 16K Bytes
Any Combination of Sectors Can Be Erased
Any Combination of Sectors Can Be Marked as Read-Only
` Compatible With JEDEC EEPROM Command Set
` Fully Automated On-Chip Erase and Byte-Program Operations
` 100000 Program/Erase Cycles
` Compatible With JEDEC Byte-Wide Pinouts
` Low-Current Consumption
Active Read . . . 20 mA Typical
Active Program/Erase . . . 30 mA Typical
` All Inputs/Outputs TTL-Compatible


Pinout

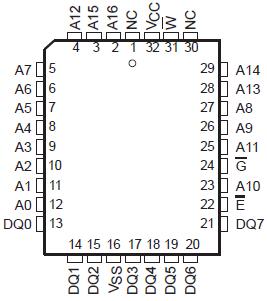

Connection Diagram


Specifications

Voltage range with respect to ground:
          Supply voltage range, VCC (see Note 3)  .  . . . . . . . . . . . 2.0 V to + 7.0 V
          All pins except A9, E, G (see Note 3) .  .. . . . . . . . . . . . . . 2.0 V to + 7.0 V
          A9, E, G (see Note 4) . . . . . . . . . . . . . . . . . . . . . .  . . . . 2.0 V to + 14.0 V
Ambient temperature range during read/erase/program, TA
          Commercial (L) . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . 0to 70
          Extended (E) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to 85
          Automotive (Q) . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . 40 to 125
Storage temperature range, Tstg   . . . . . . . . . .  . . . . . . . . . . . . . . 65 to 150
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 3. Minimum dc voltage on input or I/O pins is 0.5 V. During voltage transitions, input or I/O pins may undershoot VSS to 2.0 V for periods of up to 20 ns. Maximum dc voltage on input and I/O pins is VCC + 0.5 V. During voltage transitions, input and I/O pins may overshoot to VCC + 2.0 V for periods up to 20 ns.
4. Minimum dc input voltage on A9,E, and G pins is 0.5 V. During voltage transitions, A9, E, and G may undershoot VSS to 2.0 V for periods of up to 20 ns. Maximum dc input voltage on A9, E, and G pins is +12.5 V, which may overshoot to +14.0 V for periods up to 20 ns.


Description

The TMS29F010 is a 131072 by 8-bit (1048576-bit), 5-V single-supply, programmable read-only memory device that can be electrically erased and reprogrammed. This device is organized as eight independent 16K-byte sectors
and is offered with access times between 70 ns and 120 ns.

An on-chip state machine controls the program and erase operations. The embedded byte-program and sector/chip-erase functions are fully automatic. The command set is compatible with that of JEDEC 1M-bit EEPROMs. Data-protection of any sector combination is accomplished using a hardware sector-protection feature.

Device operations are selected by writing JEDEC-standard commands into the command register using standard microprocessor write timings. The command register acts as an input to an internal-state machine that interprets the commands, controls the erase and programming operations, outputs the status of the device,outputs data stored in the device, and outputs the device algorithm-selection code. On initial power-up operation, the device defaults to the read mode.

The TMS29F010 is offered in a 32-pin plastic leaded chip carrier (FM suffix) using 1.27-mm (50-mil) lead pitch.
