Product Details

Description



Pinout

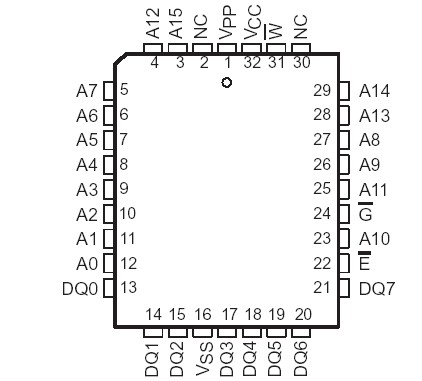

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 7 V
Supply voltage range, VPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .  0.6 V to 14 V
Input voltage range (see Note 2): All inputs except A9  . . . . . . . . . . . . . . .. . . . . 0.6 V to VCC + 1 V
                                                      A9  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 13.5 V
Output voltage range (see Note 3)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . 0.6 V to VCC + 1 V
Operating free-air temperature range during read/erase/program, TA
                                                       FML . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
                                                       FME  . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . 40°C to 85°C
                                                       FMQ  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° C to 125°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

The TMS28F512A Flash memory is a 65536 by 8-bit (524 288-bit), programmable read-only memory that can be electrically bulk-erased and reprogrammed. It is available in 10000 and 1000 program/erase endurance cycle versions.

The TMS28F512A is offered in a 32-lead plastic leaded chip-carrier package with 1,25-mm (50-mil) lead spacing (FM suffix).

The TMS28F512A is characterized for operation in temperature ranges of 0°C to 70°C (FML suffix), 40°C to 85°C (FME suffix), and 40°C to 125°C (FMQ suffix).
