Product Details

Description



Pinout

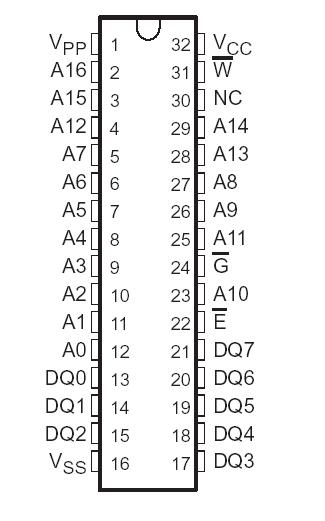

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.6 V to 7 V
Supply voltage range, VPP  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .0.6 V to 14 V
Input voltage range (see Note 2): All inputs except A9 . . . . . . . . . . . . . . . . . . . . . . . . . .0.6 V to VCC + 1 V
                                                       A9  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . .0.6 V to 13.5 V
Output voltage range (see Note 3)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.6 V to VCC + 1 V
Operating free-air temperature range during read/erase/program, TA
                                                       NL, FML, DDL, DUL  . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .0°C to 70°C
                                                       NE, FME, DDE, DUE  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
                                                       NQ, FMQ, DDQ, DUQ  . . . . . . . . . . . . . . . . . . . . . . . . . 40° C to 125°C.
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C


Description

The TMS28F010A is a 1048576-bit, programmable read-only memory that can be electrically bulk-erased and reprogrammed. It is available in 10000 and 1000 program/erase-endurancecycle versions.

The TMS28F010A Flash EEPROM is offered in a dual in-line plastic package (N suffix) designed for insertion in mounting-hole rows on 15,2-mm (600-mil) centers, a 32-lead plastic leaded chip-carrier package using 1,25-mm (50-mil) lead spacing (FM suffix), a 32-lead thin small-outline package (DD suffix), and a reverse pinout TSOP package (DU suffix).

The TMS28F010A is characterized for operation in temperature ranges of 0°C to 70°C (NL, FML, DDL, and DUL suffixes), 40°C to 85°C (NE, FME, DDE, and DUE suffixes), and 40°C to 125°C (NQ, FMQ, DDQ, and DUQ suffixes). All package types are offered with 168-hour burn-in (4 suffix).
