Product Details

Description



Pinout

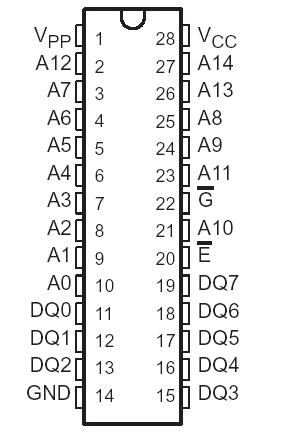

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1) :  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.6 V to 7 V
Supply voltage range, VPP :  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .0.6 V to 14 V
Input voltage range (see Note 1): All inputs except A9 :  . . . . . . . . . . . . . . . . . . . . .  . . . . . .0.6 V to VCC + 1 V
                                                       A9 :  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .0.6 V to 13.5 V
Output voltage range (see Note 1) : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .0.6 V to VCC + 1 V
Operating free-air temperature range ('27C256-_ _JL, '27PC256-_ _FML) TA :  . . . . . .  . . . . . . .0°C to 70°C
Operating free-air temperature range ('27C5256-_ _JE, '27PC256-_ _FME) TA :  . . . . . . . . . .40°C to 85°C
Storage temperature range, Tstg :  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C


Description

The TMS27C256 series are 32768 by 8-bit(262144-bit), ultraviolet (UV) light erasable,electrically programmable read-only memories(EPROMs).

The TMS27PC256 series are 32768 by 8-bit(262144-bit), one-time programmmable (OTP)electrically programmable read-only memories(PROMs).
