Product Details

Description



Pinout

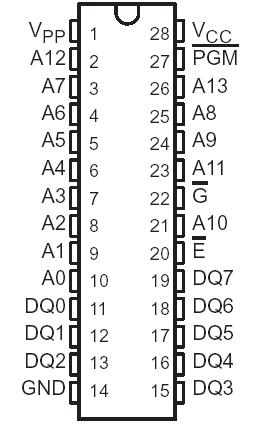

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . .0.6 V to 7 V
Supply voltage range, VPP (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.6 V to 14 V
Input voltage range (see Note 1), All inputs except A9  . . . . . . . . . . . . . . . . . . . . . . . . .0.6 V to VCC + 1 V
                                                      A9  . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .0.6 V to 13.5 V
Output voltage range (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . .0.6 V to VCC + 1 V
Operating free-air temperature range ('27C128-_ _JL and JL4, '27PC128-_ _NL, and NL4
                                                             FML, and FML4)  . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . .0°C to 70°C
Operating free-air temperature range ('27C128-_ _JE and JE4, '27PC128-_ _NE, NE4,
                                                             FME, and FME4)  . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 85°C
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C


Description

The TMS27C128 series are 131 072-bit, ultraviolet-light erasable, electrically programmable read-only memories.

The TMS27PC128 series are 131 072-bit, one time electrically programmable read-only memories.
