Features:

New features
( In comparison with TMPN3120E1M and TMPN3120FE5M )
• High-impedance communication port
• 3 Kbytes EEPROM
• 4 Kbytes static RAM

Pinout

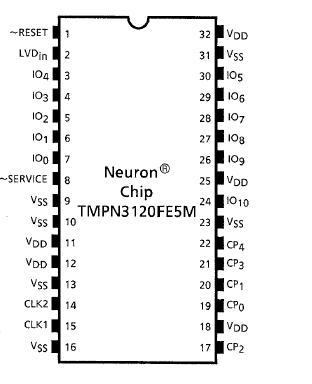

Connection Diagram

Specifications

V_SS = 0V, V_SS typ.

ITEM	SYMBOL	RATING	UNIT
Power Supply Voltage	V_DD	−0.3~7.0	V
Input Voltage	V_{IN (1)}	−0.3 to V_DD + 0.3 V	V
Input Voltage CP₀-CP₃	V_IN ₍₂₎	−0.5 to V_DD + 1.3 V V_{IN (2)} 7.3 (Note 1)	V
Drain Current	I_DD	200	mA
Source Current	I_SS	300	mA
Power Dissipation	PD	800	mW
Storage Temperature	T_stg	−65~150	°C

Note1 : V_IN(2) don't exceed the 7.3v.

OPERATING CONDITIONS

ITEM	SYMBOL	MIN	TYP.	MAX	UNIT
Operating Voltage	V_DD	4.5	5.0	5.5	V
Input Voltage ( TTL )	V_IH	2.0		V_DD	V
Input Voltage ( TTL )	V_IL	V_SS		0.8	V
Input Voltage ( CMOS )	V_IH	V_DD − 0.8 V		V_DD	V
Input Voltage ( CMOS )	V_IL	V_SS		0.8	V
Input Voltage CP₀-CP₃ ( differential mode )	V_IH			V_DD + 1.0 V	V
Input Voltage CP₀-CP₃ ( differential mode )	V_IL	−0.1			V
Operating Frequency	f_osc	0.625		20	MHz
Operating Temperature	T_opr	−40		85	°C

Description

   The Neuron Chip TMPN3120FE5M provides double the performance of previous Neuron Chips. It supports a response time of 3 to 4 ms across a LONWORKS Network and has double the input / output ( I / O ) performance of the previous Neuron Chip in terms of both response time and data transmission speed.

    The TMPN3120FE5M features an extra single-chip memory in the form of 3 Kbytes EEPROM, 4 Kbytes SRAM and 16 Kbytes ROM. It is therefore suitable for applications which require more complex operations and high speed communication control.

    Neuron Chips have all the built-in communications and control functions required to implement LONWORKS nodes.

    These nodes may then be easily integrated into highly-reliable distributed intelligent control networks.

    The typical functions for this chip are explained below.
