TMPN3120B1AM

Features:

1. I / O Functions
     Eleven programmable I / O pins.
     Two programmabL 16-bit timers and counters built in.
     34 different types of I / O functions to handle a wide range of input and output.
     ROM firmware image containing pre-programmed I / O drivers,greatly simplifying application programs.
2. Network functions
     Two CPUs for communication protocol processing built in.The communications and application CPUs execute in parallel.
     Equipped with a built-in LonTalk protocol which supports all seven levels of the OSI reference model with ISO.
     The ROM firmware image contains a complete network operating system, greatly simplifying applicationprograms.
     Built-in twisted-pair wire transceiver
     Equipped with communications modes and communication speeds which support various types of externaltransceivers.
     Supports twisted-pair wire, power line, radio ( RF ), infrared, coaxial cables, and fiber optics.
     Communication port transceiver modes and logical addresses stored within the EEPROM.Can be amended via the network.
3. Other functions
      Application programs are also stored within the EEPROM.Can be updated by downloading over the network. Up to 400-byte applications can be stored.
     Built-in watch-dog timer.
      Each chip has a unique ID number. Effective during the logical installation of networks.
      Low electrical consumption mode supported with a sleep mode.
      Built-in low-voltage detection circuit.Prevents incorrect operations and writing errors in the EEPROM during drops in power voltage.
     The package is SOP32-P-525-1.27.

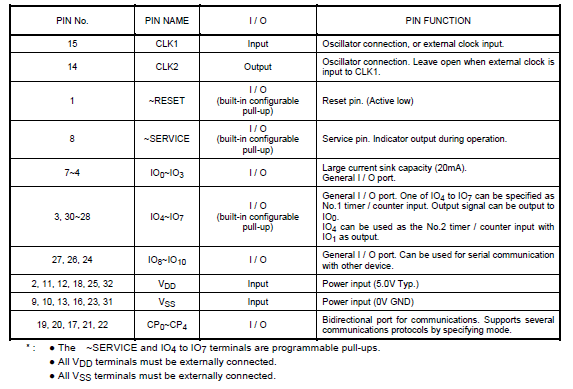

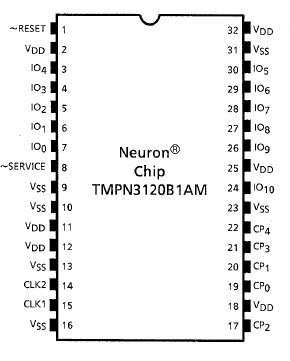

Pinout




Specifications

CHARACTERISTICS	SYMBOL	RATING	UNIT
Power Supply Voltage	VDD	−0.3~7.0	V
Input Voltage	VIN	−0.3~VDD+0.3	V
Power Dissipation	PD	800	mW
Storage Temperature	Tstg	−65~150	°C

Description

The TMPN3120B1AM is a Neuron Chip which configures LONWORKS nodes on a single chip.

Neuron Chips have all the built-in communications and control functions required to implement LONWORKS nodes.

These nodes may then be easily integrated into highly-reliable distributed intelligent control networks.

The typical functions for this chip are explained below.
