TMPA421DS

Features: Integrated 2.1 channel power amplifier in one chip15W + 6W * 2 2.1 Channel Class-D OutputPower efficiency is up to 82%Convenient gain controlTime delay for de-pop controlThermal ProtectionOutput Pin Short-Circuit Protection (Short to Other Outputs, Short to VCC, Short to Ground)Low Quies...

product image

TMPA421DS Picture
See larger image
SeekIC No. : 004524751 Detail

TMPA421DS: Features: Integrated 2.1 channel power amplifier in one chip15W + 6W * 2 2.1 Channel Class-D OutputPower efficiency is up to 82%Convenient gain controlTime delay for de-pop controlThermal Protection...

TMPA421DS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMPA421DS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Integrated 2.1 channel power amplifier in one chip
 15W + 6W * 2 2.1 Channel Class-D Output
 Power efficiency is up to 82%
 Convenient gain control
 Time delay for de-pop control
 Thermal Protection
 Output Pin Short-Circuit Protection (Short to Other Outputs, Short to VCC, Short to Ground)
 Low Quiescent Current (10mA Typical at 12V)
 Low Current in Shutdown Mode (<1µA Typical)
 Separate VCC & PVCC
 Regulated 5-V Supply Output


Application

TMPA421DS is convenient for 2.1 channel applications. It can be used for LCD Monitors, TVs, DVD Players, Powered Speakers or any 2.1 channel power amplifiers.




Pinout

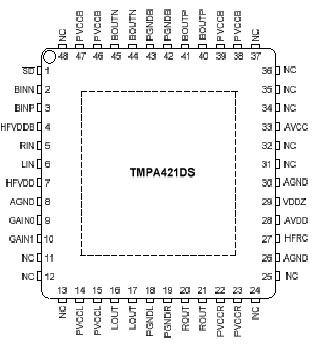

Connection Diagram


Specifications

Supply voltage, PVCCR, PVCCL, AvCC In normal mode
-0.3V to 18V
V
In shutdown mode
-0.3V to 18V
V
Input voltage, SD
0.3V to AVCC+0.3V
V
Input voltage, Gain0, Gain1, RIN, LIN, BINP, BINN
-0.3V to 5V
V
Continuous total power dissipation
See package dissipation ratings
Operating free-air temperature, TA
-20 to 85
.C
Operating junction temperature, TJ
-20 to 150
.C
Storage temperature, Tstg
-40 to 150
.C



Description



The TMPA421DS is a 2.1 Channel Class-D output audio power amplifier for driving speakers with high power efficiency. The bass output is designed as BTL (Bridge-Tied-Load) for high output power. The right& left channels are designed as SE (Single-Ended). The outputs are able to drive 4, 6, 8 or 16 speakers. The output power can be up to 15W for bass and 6W for either Right or Left channel. No external heat-sink is necessary.

The gain of the amplifier is defined by either gain0/gain1 gain control or by input resistance. Thermal protection and short-circuit protection are integrated for safety purpose.

The internal de-pop circuitry eliminates pop noise at power-up & shutdown operations.
