Features:

` 2.5V to 5.5V Single Supply
` Up to 5.3W/Ch Max. Power or 2.45W/Ch rms.
` Up to 92% Power Efficiency
` 3.5mA Quiescent Current
` Less Than 0.3uA Shutdown Current
` Popless Power-Up, Shutdown and Recovery
` Differential 250 KHz PWM Allows Bridge-Tied Load to Doubles Output Power and Eliminates LC Output Filter
` Common Mode Structure Requires No Input Capacitors
` BTL Output Requires No Output Capacitors
` Thermal Shutoff and Automatic Recovery
` Short-Circuit Protection
` Differential Signal Processing Improves CMRR & Eliminates Power Regulation & Bypass Capacitor
` Package:TSSOP, PDIP, SOP Available



Application

Multimedia application includes Cellular Phones, PDAs, DVD/CD players, TFT LCD TVs/Monitors, 2.1 channel/5.1 channel audio systems, USB audio. It is also ideal for other portable devices like Wireless Radios.




Pinout

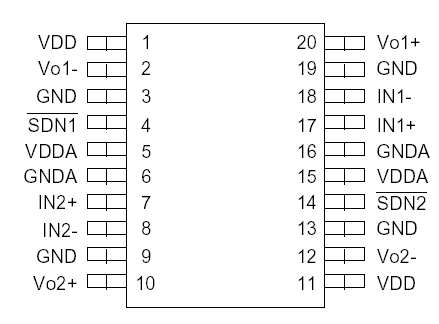

  Connection Diagram


Specifications

  TMPA205DS UNIT
Supply voltage, VDD In normal mode -0.3V to 6V V
In shutdown mode -0.3V to 7V V
Input voltage, VI -0.3V to VDD+0.3V V
Continuous total power dissipation See package dissipation ratings
Operating free-air temperature, TA -40 to 85
Operating junction temperature, TJ -40 to 150
Storage temperature, Tstg -65 to 150
Lead temperature 1,6mm(1/16 inch)from case for 10 seconds 260

(1) Stresses beyond those listed under"absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions "is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.




Description

The TMPA205DS is a stereo class-D filterfree audio power amplifier IC. It delivers up to 2.45W/Ch power into a 4 ohm load or 1.5W/Ch power into an 8 ohm load. Two patents are pending.

With common mode input structure, TMPA205DS requires no input or output coupling capacitors. It also features high Common Mode Rejection Ratio and Power Supply Rejection Ratio. For multiple-input applications, independent gain control and corner frequency can be implemented by summing the input sources through resistor ratio and input capacitor values.

Analog input signal is converted into digital output which drives directly to the speaker. High power efficiency is achieved due to digital output at the load. The audio information is embedded in PWM(Pulse Width Modulation).
