TMP95C061

Features: (1) Original 16-bit CPU• TLCS-90/900 instruction mnemonic upward compatible.• 16M-byte linear address space• General-purpose registers and register bank system• 16-bit multiplication/division and bit transfer/arithmetic instructions• High-speed DMA- 4 channe...

product image

TMP95C061 Picture
See larger image
SeekIC No. : 004524725 Detail

TMP95C061: Features: (1) Original 16-bit CPU• TLCS-90/900 instruction mnemonic upward compatible.• 16M-byte linear address space• General-purpose registers and register bank system• 16-...

TMP95C061 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMP95C061
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

(1) Original 16-bit CPU
• TLCS-90/900 instruction mnemonic upward compatible.
• 16M-byte linear address space
• General-purpose registers and register bank system
• 16-bit multiplication/division and bit transfer/arithmetic
  instructions
• High-speed DMA
- 4 channels (640ns/2 bytes at 25MHz)
(2) Minimum instruction execution time
- 160ns at 25MHz
(3) Internal RAM: None
  Internal ROM: None
(4) External memory expansion
• Can be expanded up to 16M bytes (for both programs and data)
• AM8/16 pin (select external data bus width)
• Can mix 8- and 16-bit external data bus width.¼
  Dynamic data bus sizing
(5) DRAM Controller
(6) 8-bit timer: 2 channels
(7) 16-bit timer: 2 channels
(8) Pattern generators: 4 bits, 2 channels
(9) Serial interface: 2 channels
(10) 10-bit A/D converter: 4 channels
(11) Watchdog timer
(12) Chip select/wait controller: 4 blocks
(13) Interrupt functions
• 2 CPU interrupts¼¼
  SWI instruction and Illegal instruction
• 18 internal interrupts
• 6 external interrupts
(14) I/O ports: 56 pins
(15) Standby function : 3 HALT modes (RUN, IDLE, STOP)


Pinout

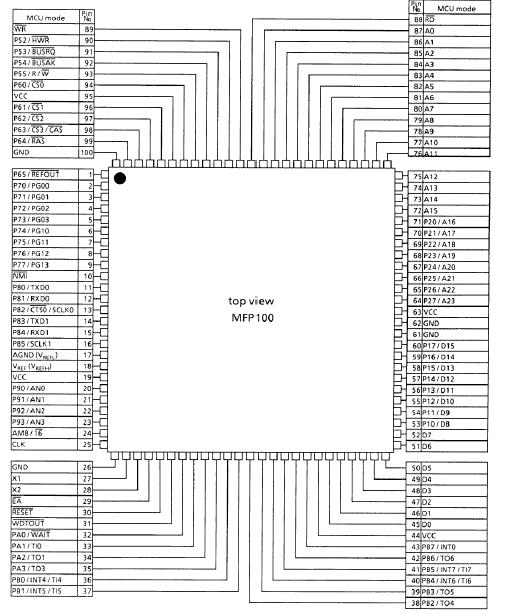

Connection Diagram


Specifications

Symbol Parameter Rating Unit
Vcc Power Supply Voltage -0.5 ~ 6.5 V
V IN Input Voltag -0.5 ~ Vcc+0.5 V
IOL Output Current (total) 102 mA
IOH Output Current (total) -120 mA
PD Power Dissipation (Ta = 70 °C) 600 mW
T SOLDER Soldering Temperature (10s) 260 °C
T STG Storage Temperature -65 ~ 150 °C
T OPR Operating Temperature -20 ~ 70 °C



Description

TMP95C061F is a high-speed advanced 16-bit microcontroller developed for controlling medium to large-scale equipment.
The TMP95C061F is housed in an 100-pin flat package.
